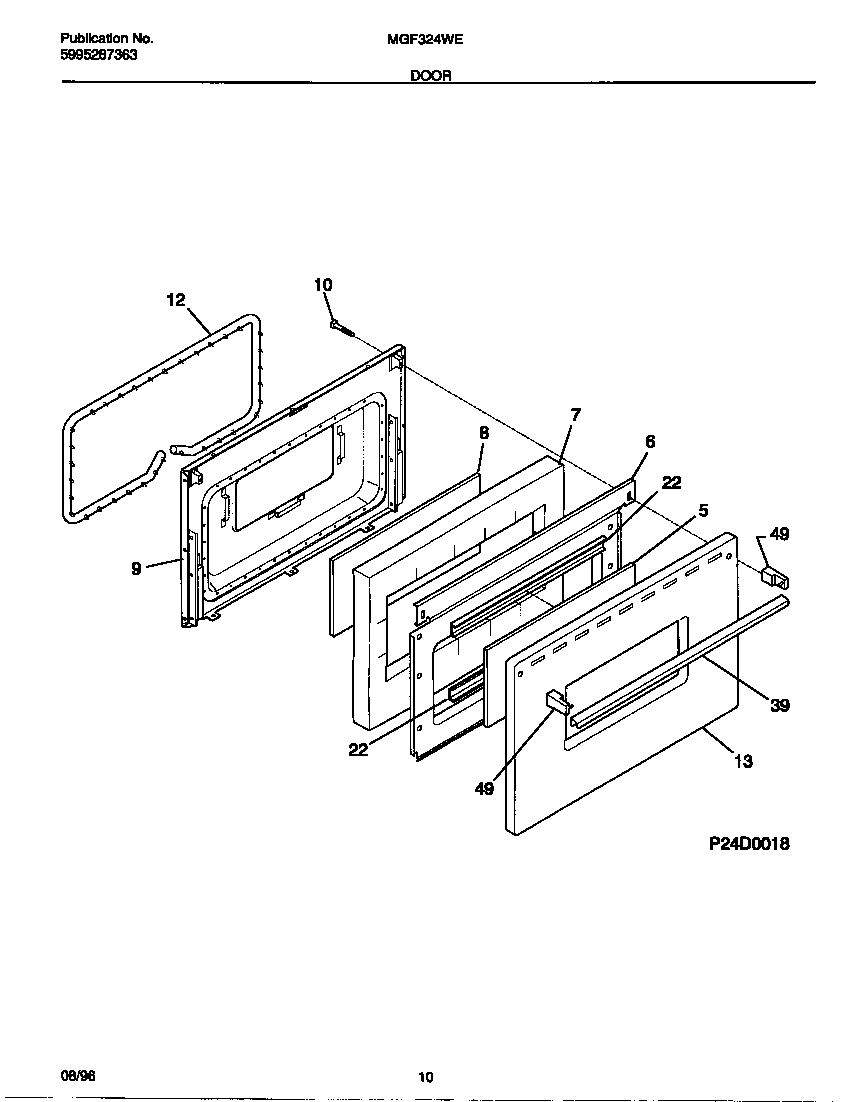

MGF324WESC 06 – DOOR

MGF324WESC 06 – DOOR

Written by

in

MGF324WESC 06 – DOOR

Products

PositionProduct
*51847SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*518505303285179 Frigidaire Oven Door Screw
*518485303271648 Frigidaire Oven Screw
*51849WCI 5303280311
*51851131243700 Frigidaire Screw
5WCI 316050300
6WCI 316088403
7WCI 316076401
8GLASS-OVEN DOOR, AIRWASH
9WCI 316066610
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
125303202011 Frigidaire Door Seal
13PANEL, OVEN DOOR, WHITE
22Retainer,glass ,(2) ,angle
39316020202 Frigidaire Door Handle Assembly
49WCI 316020101
