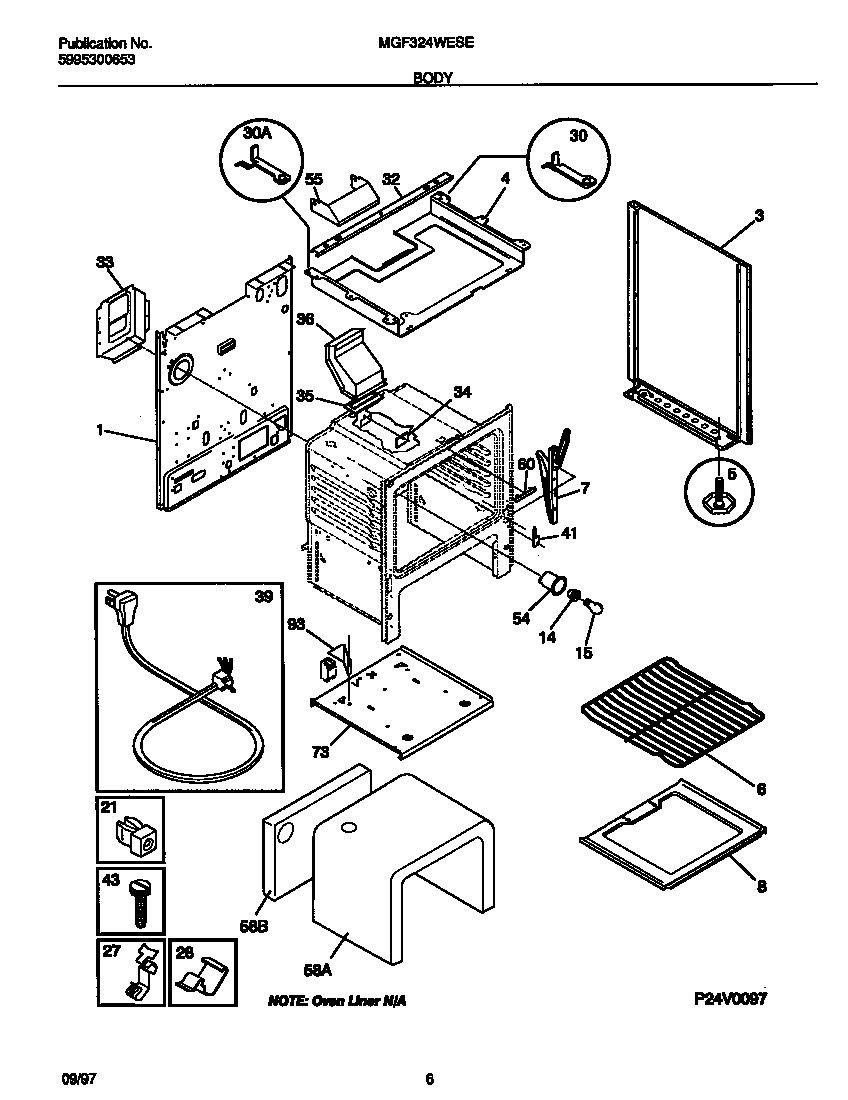

MGF324WESE 04 – BODY

MGF324WESE 04 – BODY

Written by

in

MGF324WESE 04 – BODY

Products

PositionProduct
*76603WCI 316001219
*76602Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029412
3WCI 316081028
3WCI 316081029
4WCI 316067206
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5316116000 Frigidaire Screw
5WCI 3934058
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
73203010 Frigidaire Clip
7Hinge,oven door ,(2)
8316064600 Frigidaire Oven Support
8BTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
325303289684 Frigidaire FASTENER
32CHANNEL-BURNER BOX
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
55WCI 5303289358
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055500
