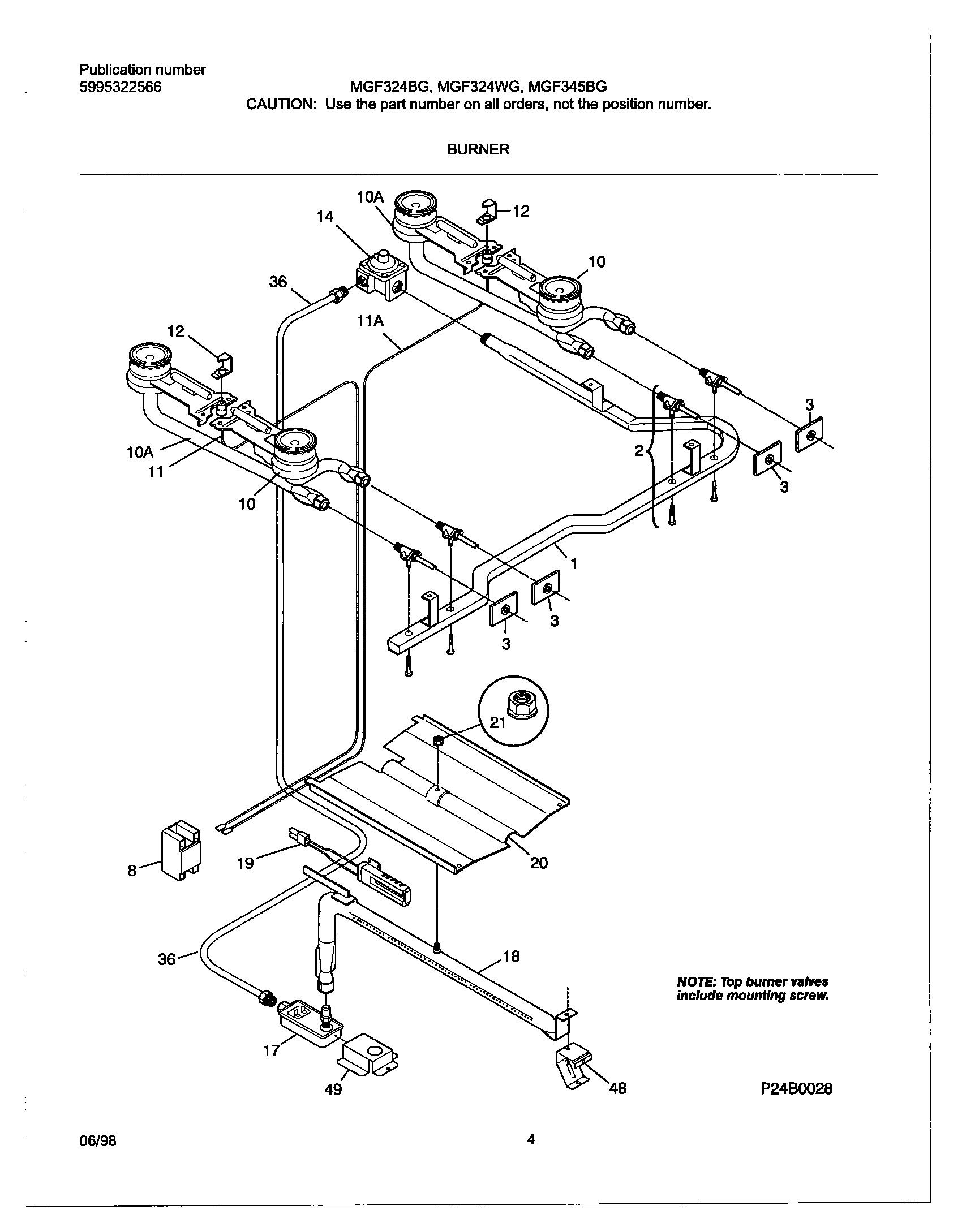

MGF324WGSD 03 – BURNER

MGF324WGSD 03 – BURNER

Written by

in

MGF324WGSD 03 – BURNER

Products

PositionProduct
*58568316021104 Frigidaire Oven Screw Assembly
*585665303271648 Frigidaire Oven Screw
*58567316048200 Frigidaire Oven Screw
1WCI 316113500
2WCI 316098600
3WCI 316103601
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
105304506426 Frigidaire Oven Top Rear Burner
105304506427 Frigidaire Oven Range Surface Burner (White)
11AIGNITER-TOP BURNER, BASE, (2)
11CIGNITER-TOP BURNER, BASE, 33“
11WCI 316081701
11BWCI 316081700
123016993 Frigidaire Oven Retainer
14WCI 316082900
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18WCI 3131439
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203265
215303013272 Frigidaire Oven Nut
36WCI 316083000
48WCI 3018603
49BRKT.-VALVE
