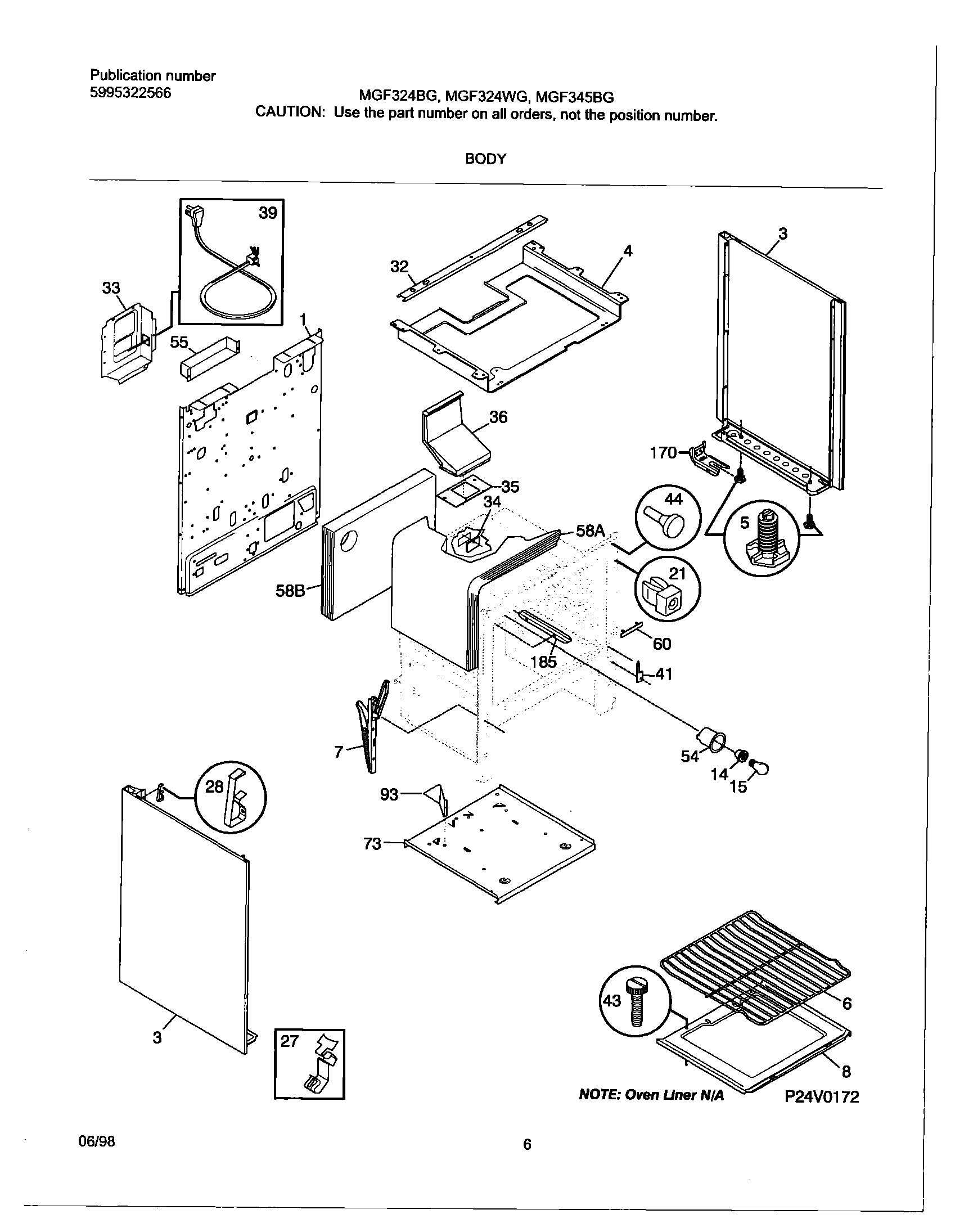

MGF324WGSD 04 – BODY

MGF324WGSD 04 – BODY

Written by

in

MGF324WGSD 04 – BODY

Products

PositionProduct
*58572SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*585715303289684 Frigidaire FASTENER
*58569Screw,cup pt ,8-18 x 0.375 ,chrome
*58570316064600 Frigidaire Oven Support
1WCI 316029412
3BWCI 316081035
3AWCI 316081034
4WCI 316067206
5WCI 316107300
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
8BTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
32CHANNEL-BURNER BOX
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
55WCI 5303289358
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73WCI 316109902
93WCI 316110000
170B316116000 Frigidaire Screw
170A316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
185316112900 Frigidaire SHIELD
