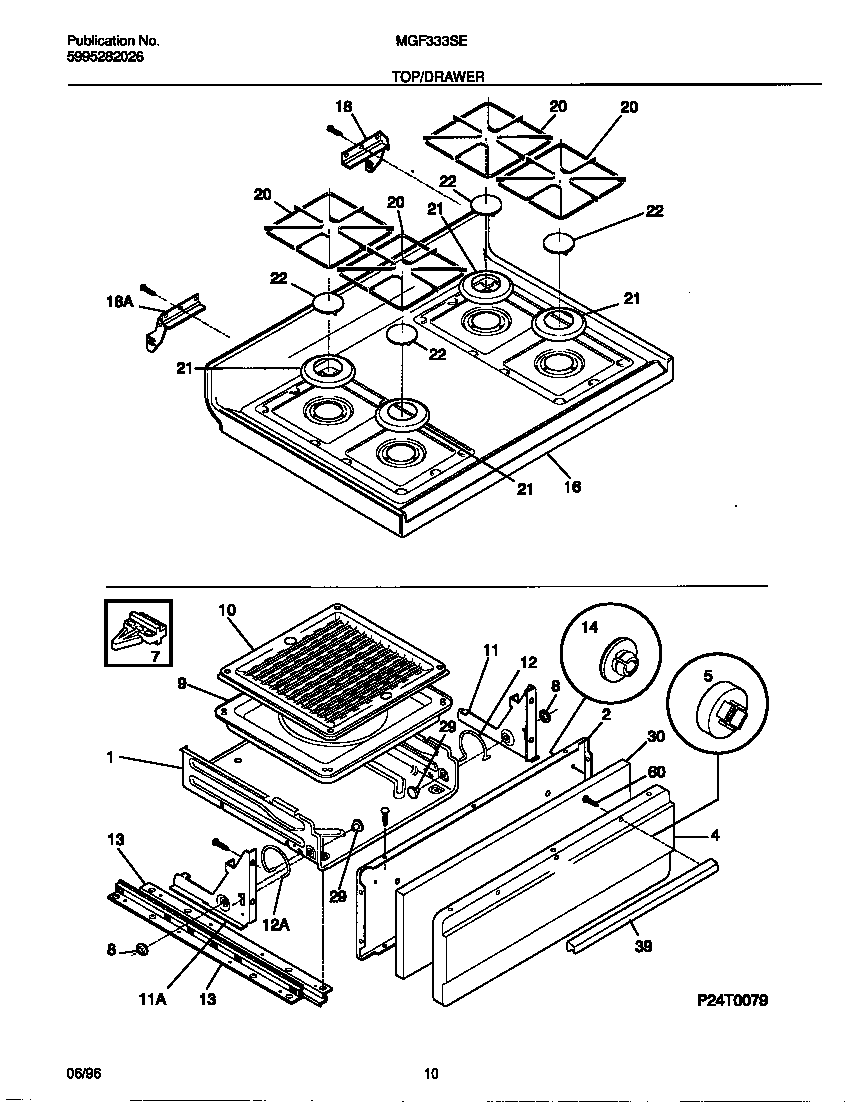

MGF333SEDB 06 – TOP/DRAWER

Products

PositionProduct
*20205WCI 5303280311
*20206131243700 Frigidaire Screw
1DRAWER-BROILER
2WCI 3202803
4WCI 316056206
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, LH
11BRACKET-BROILER HINGE, RH
12WCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 5303301547
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
20WCI 316088900
21TRIM RING-BURNER, BLACK, SMALL, (4)
22316010901 Frigidaire Burner Cap P1
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39HANDLE-DRAWER, BRUSHED CHROME
60316089500 Frigidaire Oven Screw
