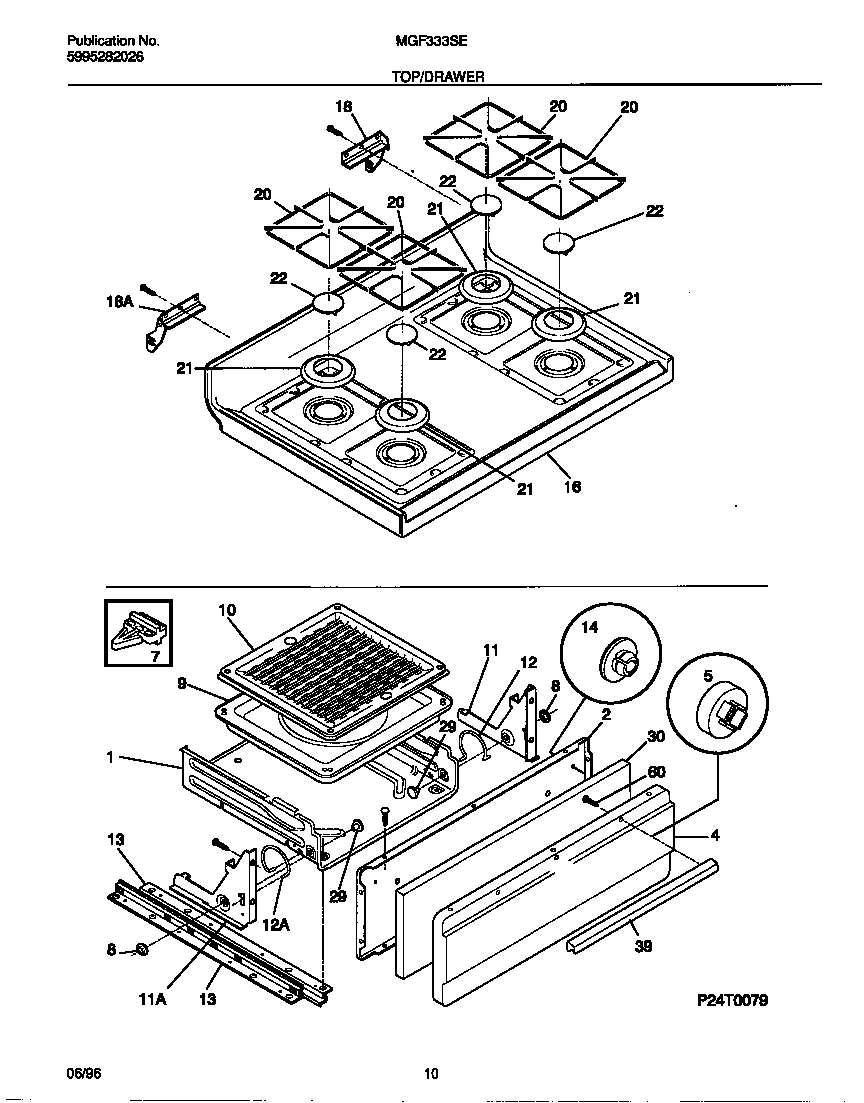

MGF333SEWB 06 – TOP/DRAWERadmin2025-04-26T11:54:33+00:00MGF333SEWB 06 – TOP/DRAWER
Products
| Position | Product |
|---|
| *20205 | WCI 5303280311 |
| *20206 | 131243700 Frigidaire Screw |
| 1 | DRAWER-BROILER |
| 2 | WCI 3202803 |
| 4 | PANEL-BROILER, WHITE |
| 4 | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 5 | FSTNR, SPACER (2) |
| 7 | GLIDE-DRAWER, REAR |
| 8 | WCI 3131386 |
| 9 | PAN-BROILER |
| 10 | WCI 5303131356 |
| 11 | BRACKET-BROILER HINGE, LH |
| 11 | BRACKET-BROILER HINGE, RH |
| 12 | WCI 3018618` |
| 12 | SPRING-BROILER, RH |
| 13 | WCI 3131153 |
| 14 | WCI 3206216 |
| 16B | GUSSET-MTG (LH) (NON-ILLUSTRATED) |
| 16 | WCI 5303301546 |
| 16A | GUSSET-MTG (RH) (NON-ILLUSTRATED) |
| 20 | WCI 316088900 |
| 21 | TRIM RING-BURNER, BLACK, SMALL, (4) |
| 22 | 316010901 Frigidaire Burner Cap P1 |
| 29 | PIN, HINGE (2) |
| 30 | INSULATION, BROILER DRAWER |
| 39 | HANDLE-DRAWER, BRUSHED CHROME |
| 60 | 316089500 Frigidaire Oven Screw |
