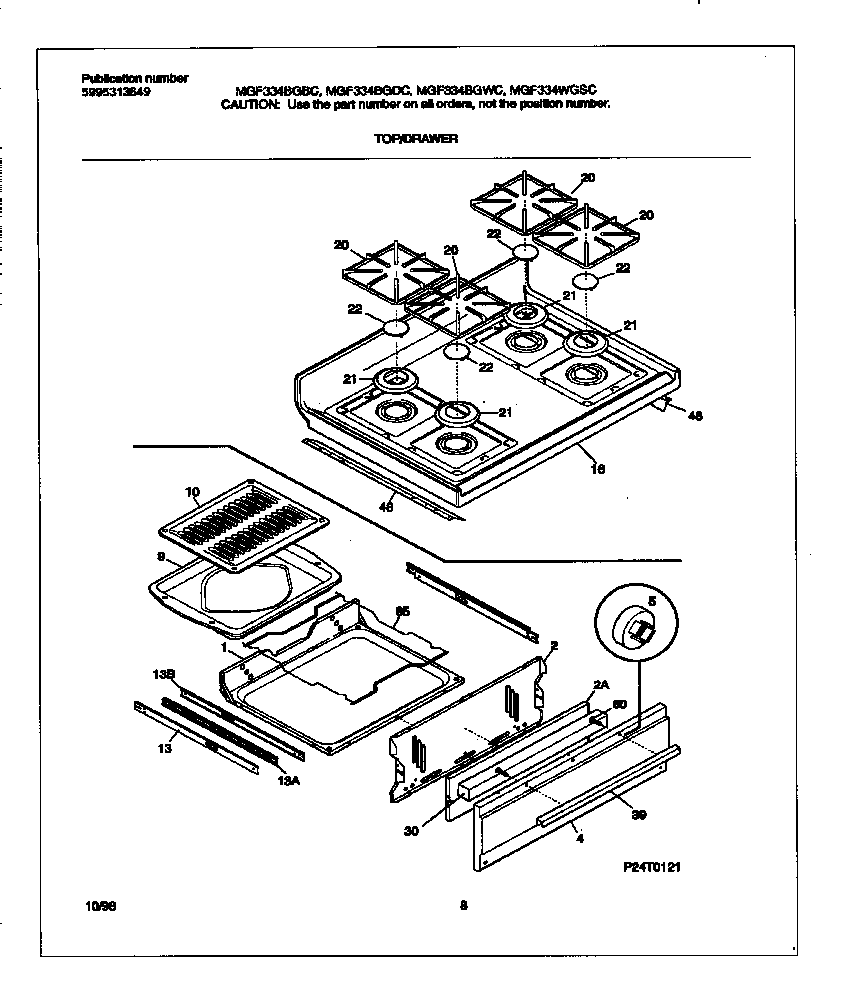

MGF334BGBC 05 – TOP/DRAWER

MGF334BGBC 05 – TOP/DRAWER

Written by

in

MGF334BGBC 05 – TOP/DRAWER

Products

PositionProduct
*04979WCI 5303280311
*04976316021109 Frigidaire Oven Screw
*04975Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316110201
2WCI 316110101
2WCI 316110800
4WCI 316056207
5FSTNR, SPACER (2)
10WCI 5303280308
13GLIDE-DRAWER,OUTER
13WCI 316111501
13WCI 316111600
16WCI 5303291521
20WCI 316085201
21TRIM RING-BURNER, BLACK, SMALL, (4)
22316010901 Frigidaire Burner Cap P1
30WCI 316111400
39WCI 316019509
48Shield,deflector ,main top panel ,(2)
60316021105 Frigidaire Oven Screw
85WCI 316115600
