MGF334BGDA 05 – TOP/DRAWER – Aparts

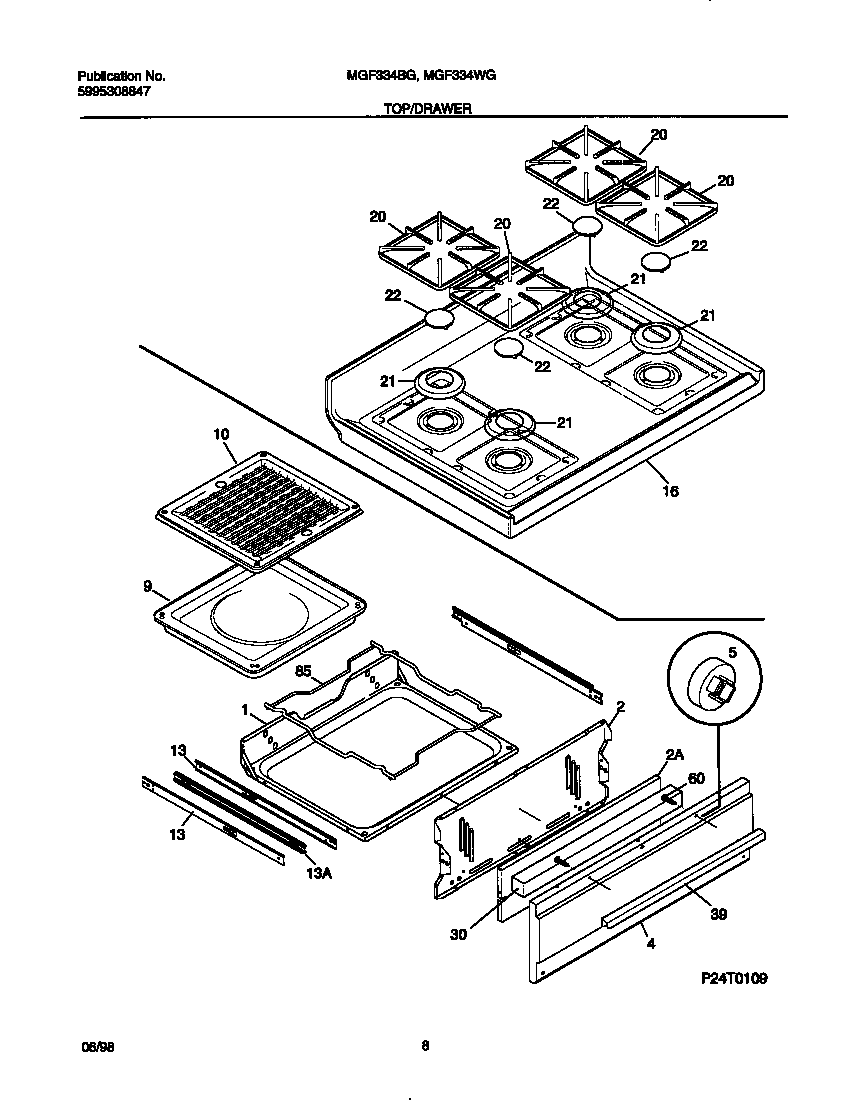

MGF334BGDA 05 – TOP/DRAWER

Products

Position	Product
*01819	316021105 Frigidaire Oven Screw
*01821	316021109 Frigidaire Oven Screw
*01824	316089500 Frigidaire Oven Screw
*01820	Screw,cup pt ,8-18 x 0.375 ,chrome
*01825	WCI 5303280311
1	CARRIAGE,BROILER
2	WCI 316110101
2	WCI 316110800
4	WCI 316056206
5	FSTNR, SPACER (2)
9	PAN-BROILER
10A	WCI 5303131356
10B	WCI 5303280308
13	WCI 316111600
13	GLIDE-DRAWER,OUTER
16	WCI 5303301547
20	WCI 316085201
21	TRIM RING-BURNER, BLACK, SMALL, (4)
22	316010901 Frigidaire Burner Cap P1
30	WCI 316111400
39	WCI 316019508
85	WCI 316110500
