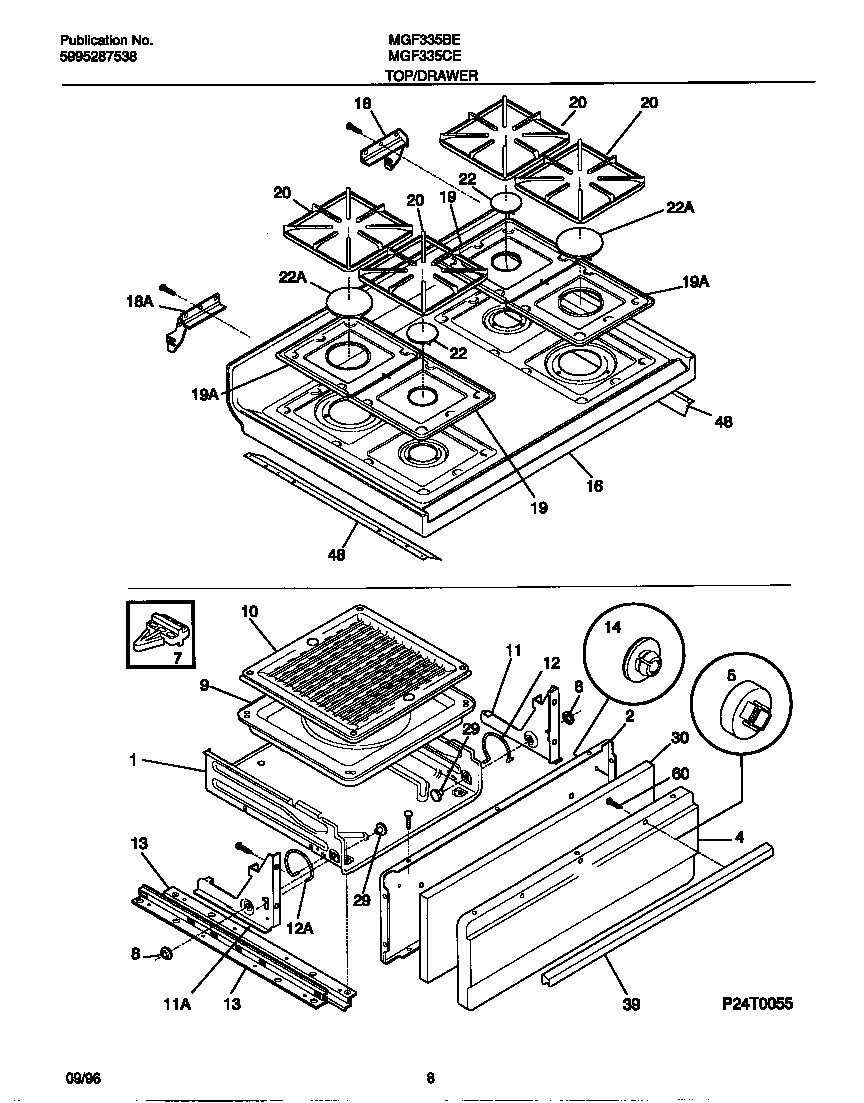

MGF335CESA 05 – TOP/DRAWER

Products

Position	Product
*85363	Screw,cup pt ,8-18 x 0.375 ,chrome
*85365	131243700 Frigidaire Screw
*85364	WCI 5303280311
1	DRAWER-BROILER
2	WCI 3202803
4A	PANEL-BROILER, WHITE
4B	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	GLIDE-DRAWER, REAR
8	WCI 3131386
9	PAN-BROILER
10	WCI 5303131356
11	BRACKET-BROILER HINGE, RH
11	BRACKET-BROILER HINGE, LH
12	WCI 3018618`
12	SPRING-BROILER, RH
13	WCI 3131153
14	WCI 3206216
16	WCI 5303307709
19	WCI 316011413
19	Pan-burner,large ,gray
20	WCI 316085202
22	CAP-BURNER, MATTE GRAY, SMALL, (2)
22	WCI 316011013
29	PIN, HINGE (2)
30	INSULATION, BROILER DRAWER
39	WCI 316019505
48B	Shield,deflector ,main top panel ,(2)
48A	WCI 316077400
60	316089500 Frigidaire Oven Screw
