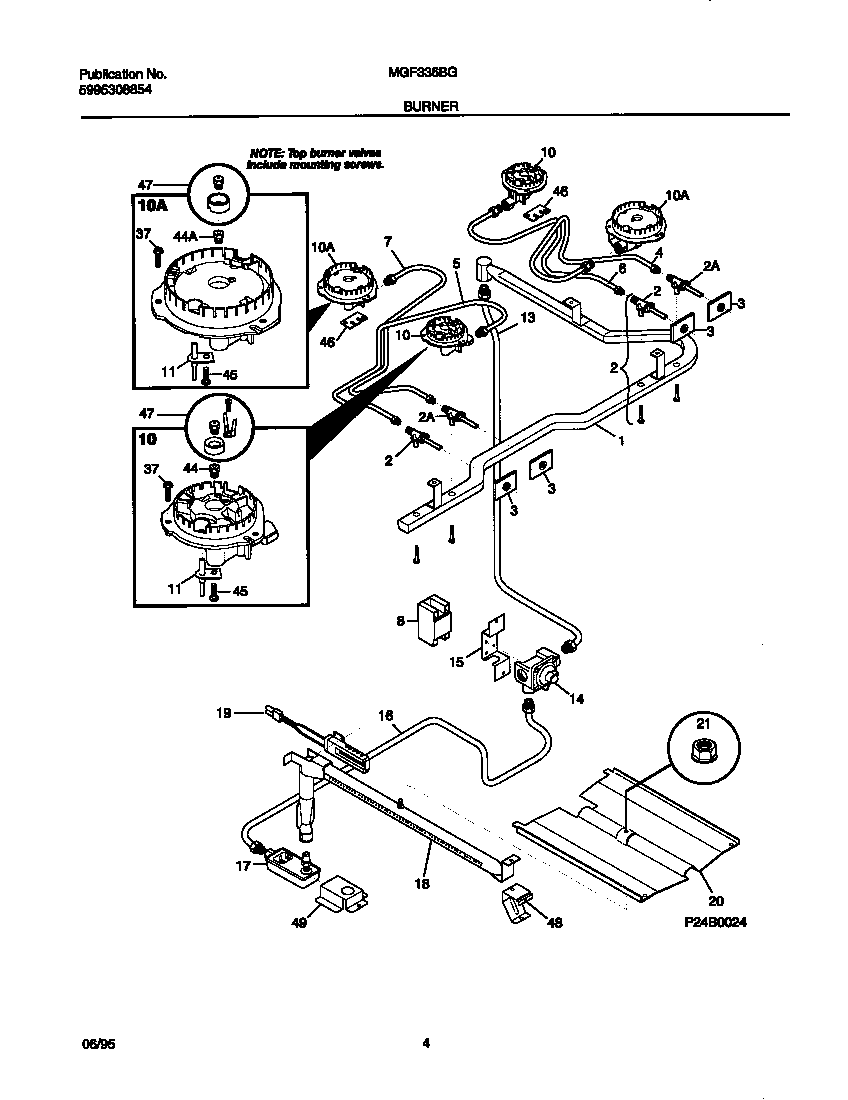

MGF336BGDA 03 – BURNER

MGF336BGDA 03 – BURNER

Written by

in

MGF336BGDA 03 – BURNER

Products

PositionProduct
*34284HARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
*34285316021104 Frigidaire Oven Screw Assembly
*34283316048200 Frigidaire Oven Screw
1WCI 316066201
2WCI 5303935130
2VALVE-TOP BURNER, LARGE
3SWITCH-IGNITOR
4WCI 316059612
5316059613 Frigidaire Oven Tube-LF
6WCI 316059614
7316059615 Frigidaire Oven Tube
85304505695 Frigidaire Oven Module
10Burner Assy-top,sealed ,large ,11,100 BTU,(2), includes ,11,37,44,45
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 316065005
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18WCI 3131439
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203265
215303013272 Frigidaire Oven Nut
44ORIFICE-TOP BURNER, (4)
45WCI 316011100
46WCI 316074700
48WCI 3018603
49BRKT.-VALVE
50AWCI 316090201
50B316010601 Frigidaire Top Burner
