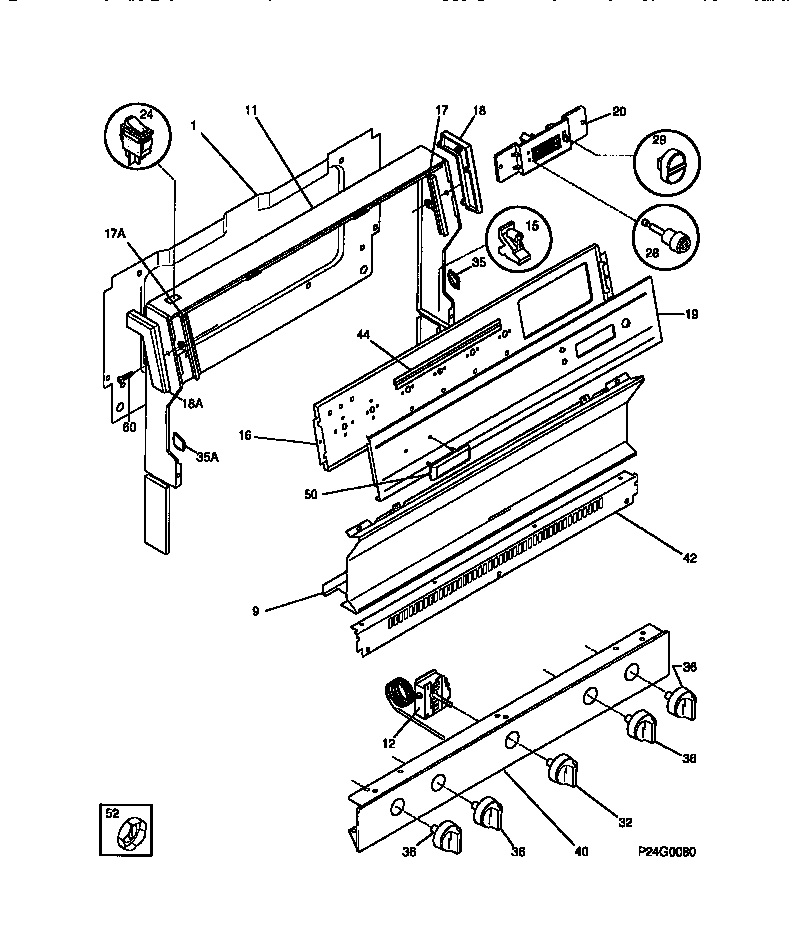

MGF345BBDA 02 – BACKGUARD

Products

Position	Product
*88041	316021105 Frigidaire Oven Screw
*88040	WCI 5303281584
1	SHIELD-BACKGUARD,REAR WALL
9	WCI 316043502
11	WCI 3204764
12	316032411 Frigidaire Stove Temperature Control Thermostat
12	INSULATOR-THERMOSTAT (NOT ILLUSTRATED)
15	SUPPORT-BACKGUARD,(2)
16	WCI 316042601
17A	TRIM-GLASS RETAINER,LH
17	TRIM-GLASS RETAINER,RH
18A	WCI 5303272307
18	WCI 5303272308
19	WCI 316034509
20	WCI 5303272309
24	5308015487 Frigidaire Switch-Oven Light
28	BUTTON-CLOCK
29	KNOB-TIMER BUTTON
32	WCI 5303288194
35A	CAP-LH
35	CAP-RH
36	KNOB-TOP VALVE, (4)
40	WCI 316009220
42	WCI 3131241
44	WCI 3131468
50	WCI 316067000
52	NUT, TWIST
60	WCI 5303289970
