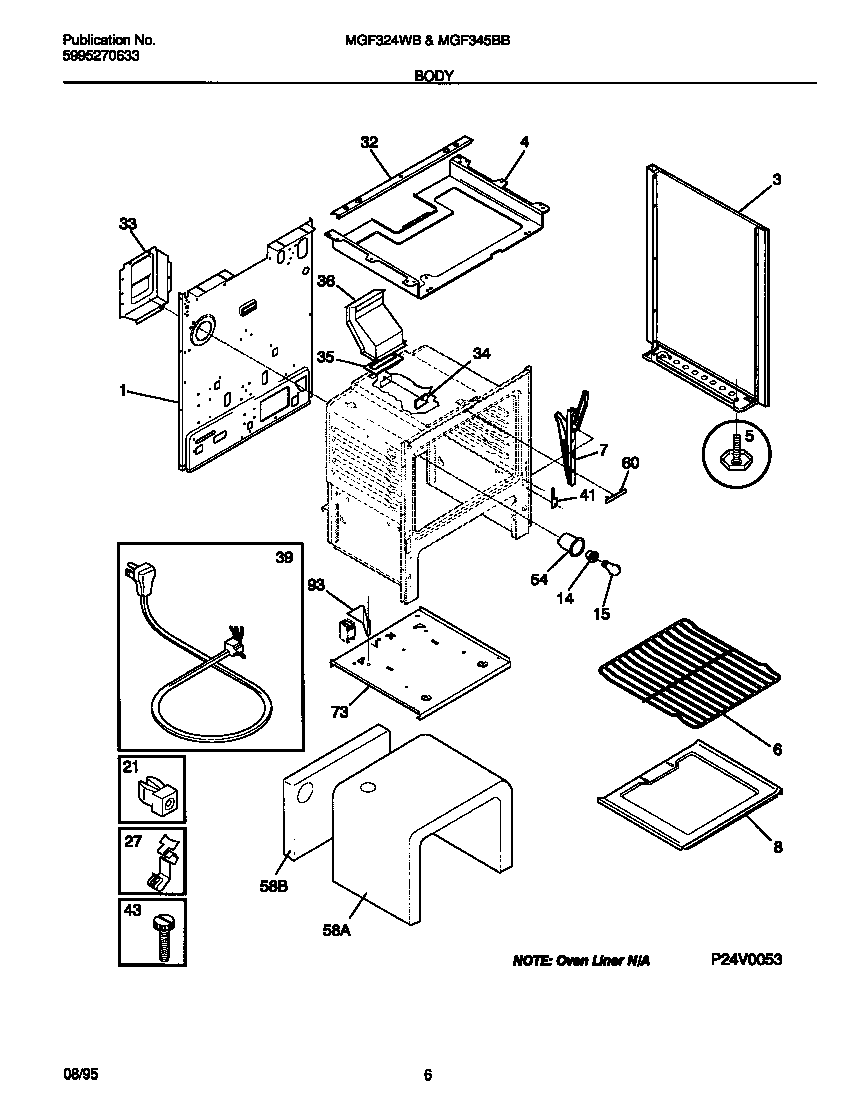

MGF345BBDC 04 – BODY

MGF345BBDC 04 – BODY

Written by

in

MGF345BBDC 04 – BODY

Products

PositionProduct
*21848WCI 316001219
*21846WCI 5303280614
*21845WCI 316056500
*21844WCI 08067961
*21847WCI 5303281584
1WCI 316029410
3AWCI 316081007
3WCI 316081006
4WCI 316067204
5AWCI 3934058
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5B316116000 Frigidaire Screw
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
7A3203010 Frigidaire Clip
8BTTM-OVEN
8A316064600 Frigidaire Oven Support
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32CHANNEL-BURNER BOX
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055501
