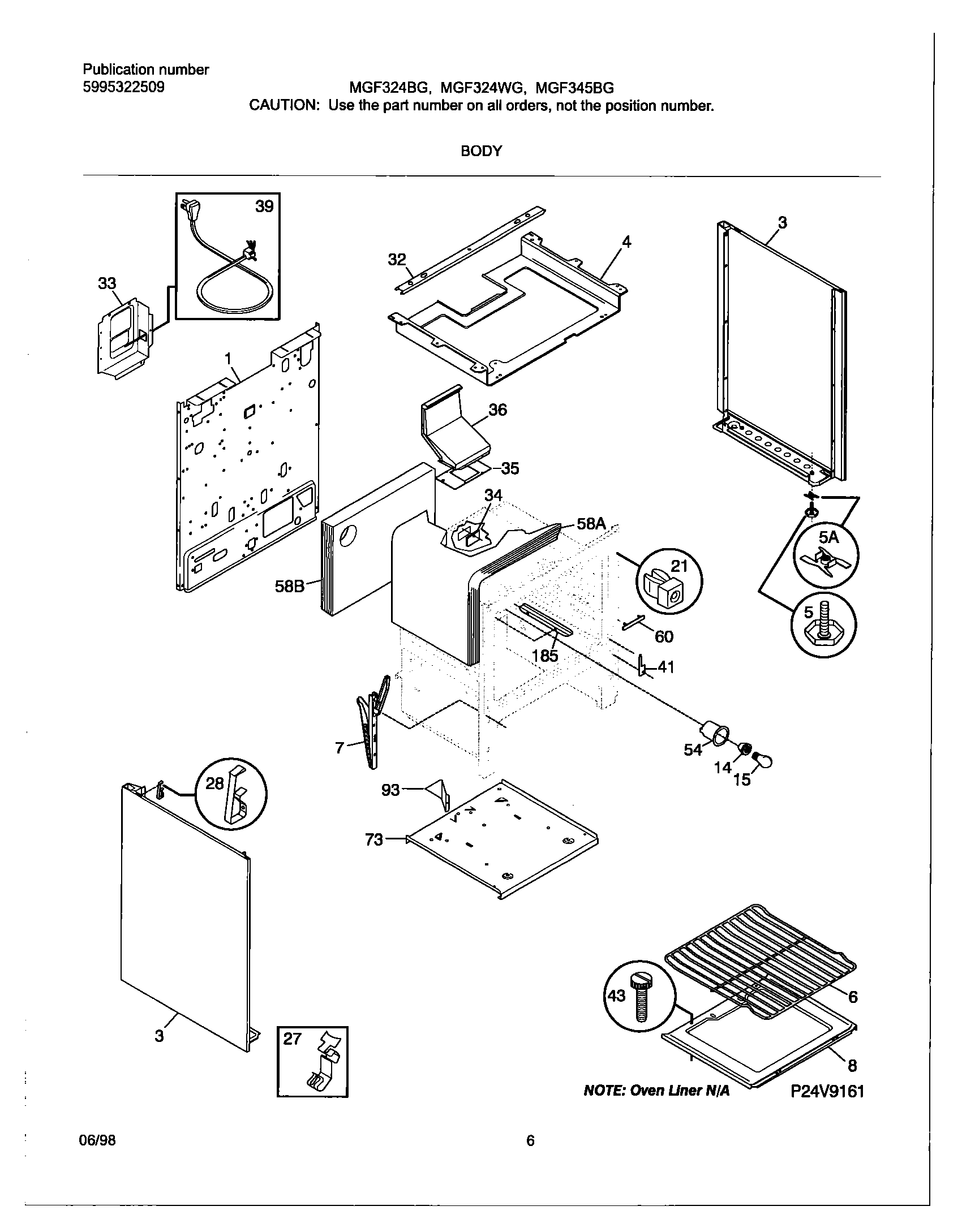

MGF345BGWB 04 – BODY

MGF345BGWB 04 – BODY

Written by

in

MGF345BGWB 04 – BODY

Products

PositionProduct
*364925303289684 Frigidaire FASTENER
*36493SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*36487WCI 316081029
*36490316116000 Frigidaire Screw
*36489WCI 3934058
*36486Screw,cup pt ,8-18 x 0.375 ,chrome
*36491316064600 Frigidaire Oven Support
1WCI 316029412
3WCI 316081028
4WCI 316067206
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
8BTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
32CHANNEL-BURNER BOX
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
55WCI 5303289358
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73WCI 316109901
93WCI 316110000
185316112900 Frigidaire SHIELD
