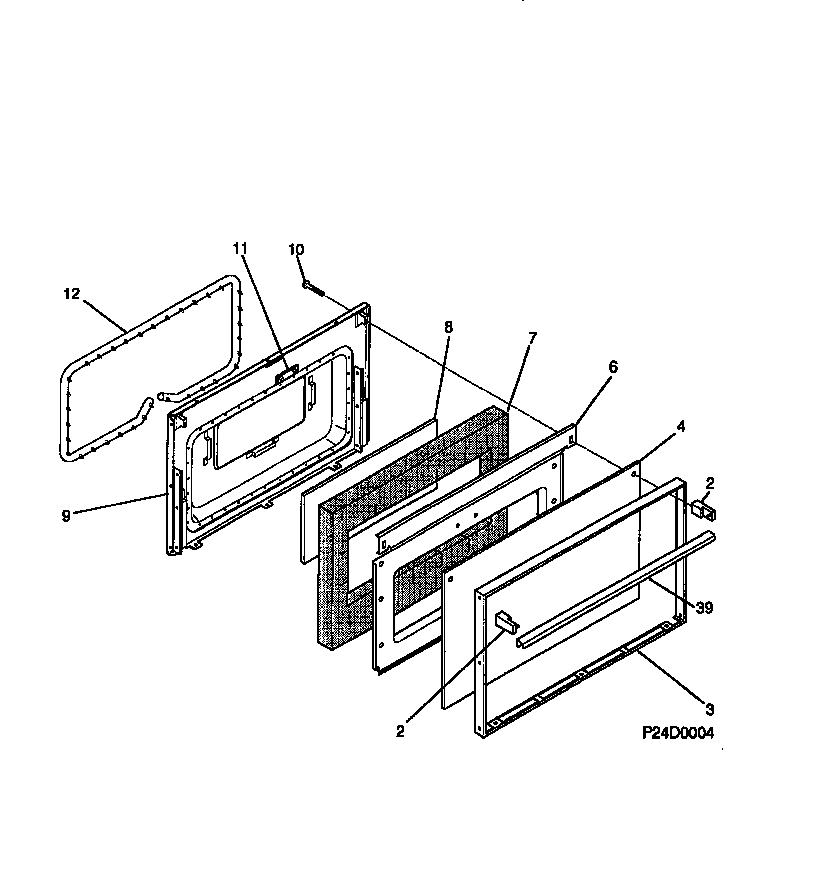

MGF345CBSA 06 – DOOR

Products

Position	Product
*88047	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*88048	WCI 5303269859
*88049	5303285179 Frigidaire Oven Door Screw
*88046	WCI 316071600
*88050	WCI 5303280311
2	END CAP, WHITE, (2)
3	WCI 316067804
4	GLASS-OVEN DOOR, WHITE, OUTER
6	SHIELD-INSULATION, WHITE
7	INSULATION-OVEN DR
8	WCI 316050303
9	WCI 316066603
10	SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
11	WCI 5303015373
12	5303202011 Frigidaire Door Seal
39	316020202 Frigidaire Door Handle Assembly
