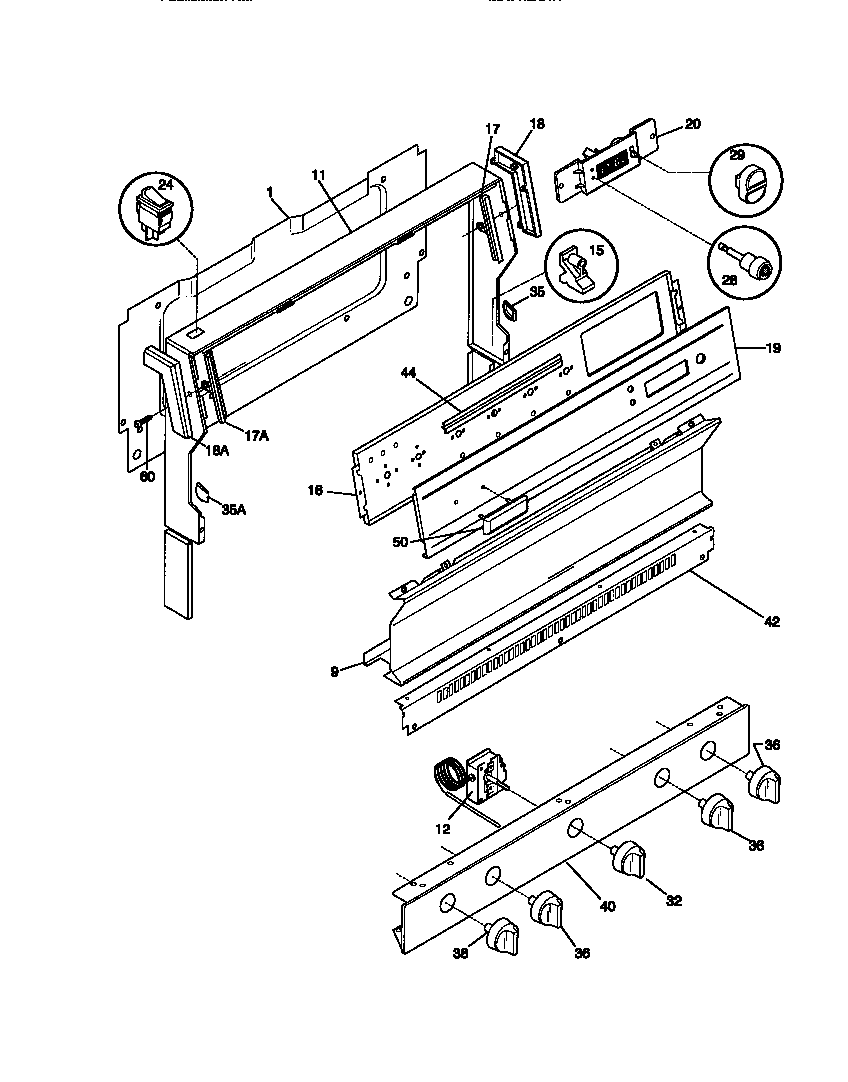

MGF345CBSB 02 – BACKGUARD

Written by

Products

Position	Product
*98640	316021105 Frigidaire Oven Screw
*98641	WCI 5303281584
1	SHIELD-BACKGUARD,REAR WALL
9	WCI 316043501
11	WCI 5303283833
12	INSULATOR-THERMOSTAT (NOT ILLUSTRATED)
12	316032411 Frigidaire Stove Temperature Control Thermostat
15	SUPPORT-BACKGUARD,(2)
16	WCI 316042601
17	WCI 316037400
17	WCI 316037401
18	WCI 3204747
18	WCI 3204746
19	WCI 316034525
20	WCI 5303272309
24	WCI 5303285911
28	WCI 316017302
29	WCI 316028401
32	WCI 5303293705
35	WCI 316037302
35	WCI 316037303
36	WCI 5303293703
40	WCI 316009260
42	WCI 316084300
44	WCI 3131468
50	WCI 316067002
50	NUT, TWIST
60	SCREW-END CAP
