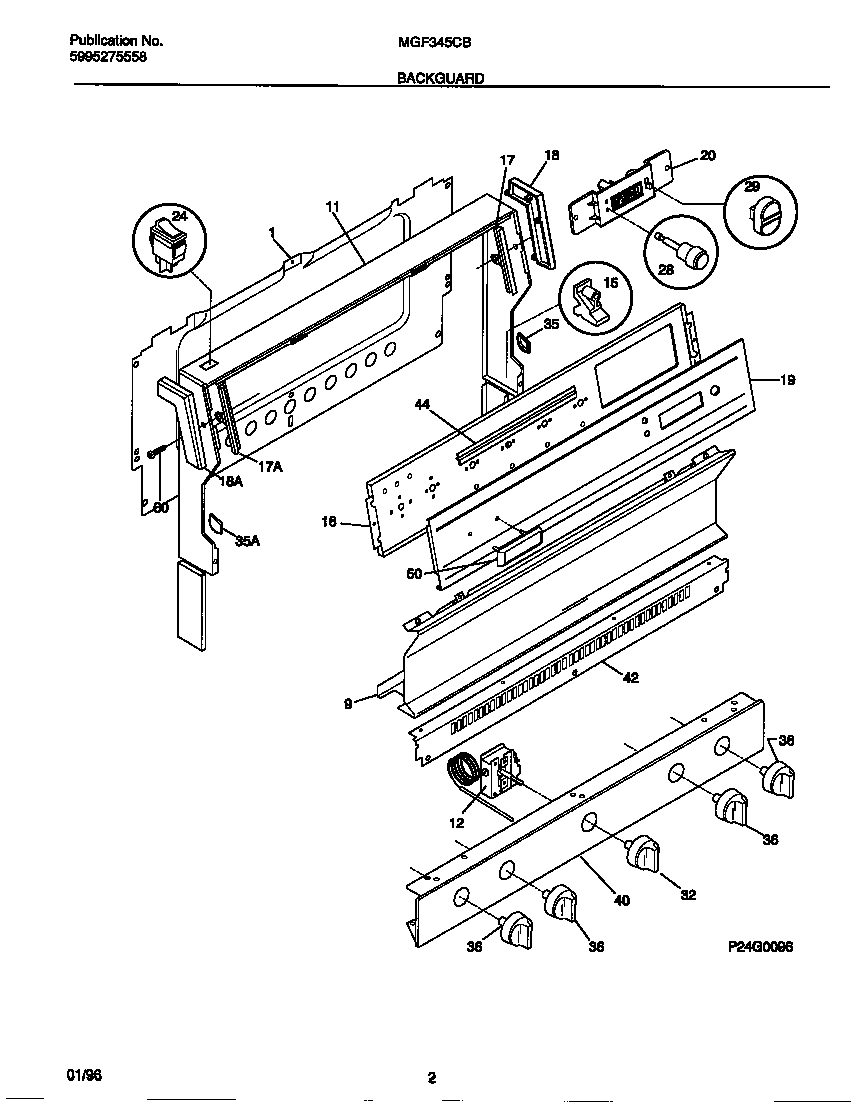

MGF345CBSD 02 – BACKGUARD

Written by

Products

Position	Product
*33160	316021105 Frigidaire Oven Screw
*33161	WCI 5303281584
1	SHIELD-BACKGUARD,REAR WALL
9	WCI 316043501
11	WCI 316083710
12	INSULATOR-THERMOSTAT (NOT ILLUSTRATED)
12	316032411 Frigidaire Stove Temperature Control Thermostat
15	SUPPORT-BACKGUARD,(2)
16	WCI 316042601
17	WCI 316037402
17	WCI 316037403
18	WCI 3204746
18	WCI 3204747
19	WCI 316034525
20	WCI 5303272309
24	5304527842 Frigidaire Rocker Switch
28	WCI 316017303
29	WCI 316028402
32	WCI 316009103
35	WCI 316037303
35	WCI 316037302
36	WCI 316009027
40	WCI 316009282
42	WCI 316084300
44	WCI 3131468
50	WCI 316067002
60	SCREW-END CAP
