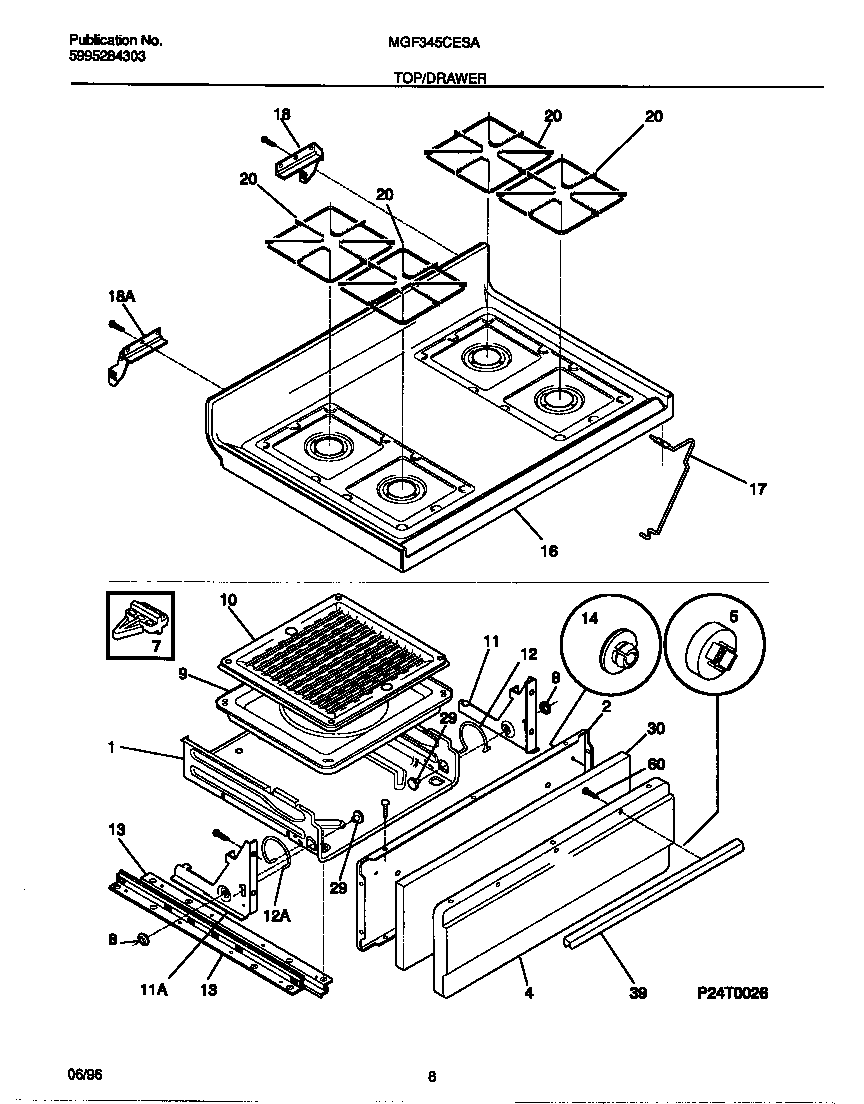

MGF345CESA 05 – TOP/DRAWERadmin2025-04-26T09:20:15+00:00MGF345CESA 05 – TOP/DRAWER
Products
| Position | Product |
|---|
| *28485 | WCI 5303280311 |
| *28484 | Screw,cup pt ,8-18 x 0.375 ,chrome |
| *28486 | 131243700 Frigidaire Screw |
| 1 | DRAWER-BROILER |
| 2 | WCI 3202803 |
| 4 | PANEL-BROILER, WHITE |
| 4 | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 5 | FSTNR, SPACER (2) |
| 7 | GLIDE-DRAWER, REAR |
| 8 | WCI 3131386 |
| 9 | PAN-BROILER |
| 10 | WCI 5303131356 |
| 11 | BRACKET-BROILER HINGE, RH |
| 11 | BRACKET-BROILER HINGE, LH |
| 12 | WCI 3018618` |
| 12 | SPRING-BROILER, RH |
| 13 | WCI 3131153 |
| 14 | WCI 3206216 |
| 16 | WCI 5303285552 |
| 17 | 316057601 Frigidaire Oven Rod |
| 18 | HINGE-MAIN TOP (RH) |
| 18 | HINGE-MAIN TOP (LH) |
| 20 | WCI 316088901 |
| 29 | PIN, HINGE (2) |
| 30 | INSULATION, BROILER DRAWER |
| 39 | WCI 316019505 |
| 60 | 316089500 Frigidaire Oven Screw |
