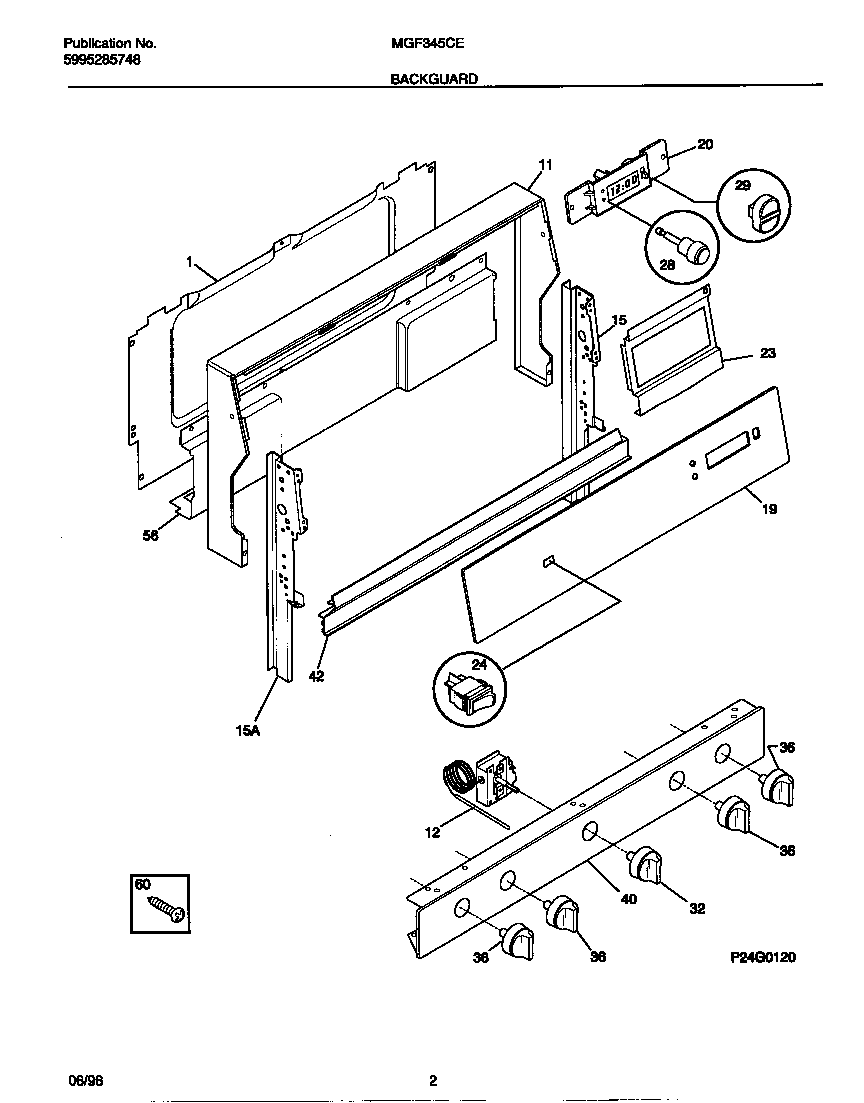

MGF345CESB 02 – BACKGUARD

Products

Position	Product
*61761	WCI 316067004
*61760	Screw,cup pt ,8-18 x 0.375 ,chrome
1	SHIELD-BACKGUARD, REAR WALL
11	WCI 316061847
12	INSULATOR-THERMOSTAT (NOT ILLUSTRATED)
12	316032411 Frigidaire Stove Temperature Control Thermostat
15	WCI 316023110
15	WCI 316023111
19	WCI 316082607
20	WCI 316096000
23	WCI 316079003
24	5304527842 Frigidaire Rocker Switch
28	WCI 316017303
29	WCI 316028402
32	316102303 Frigidaire P-1 Knob
36	316009046 Frigidaire Oven Knob
40	PANEL-MANIFOLD
42	WCI 316083300
56	WCI 316074902
60	316021105 Frigidaire Oven Screw
