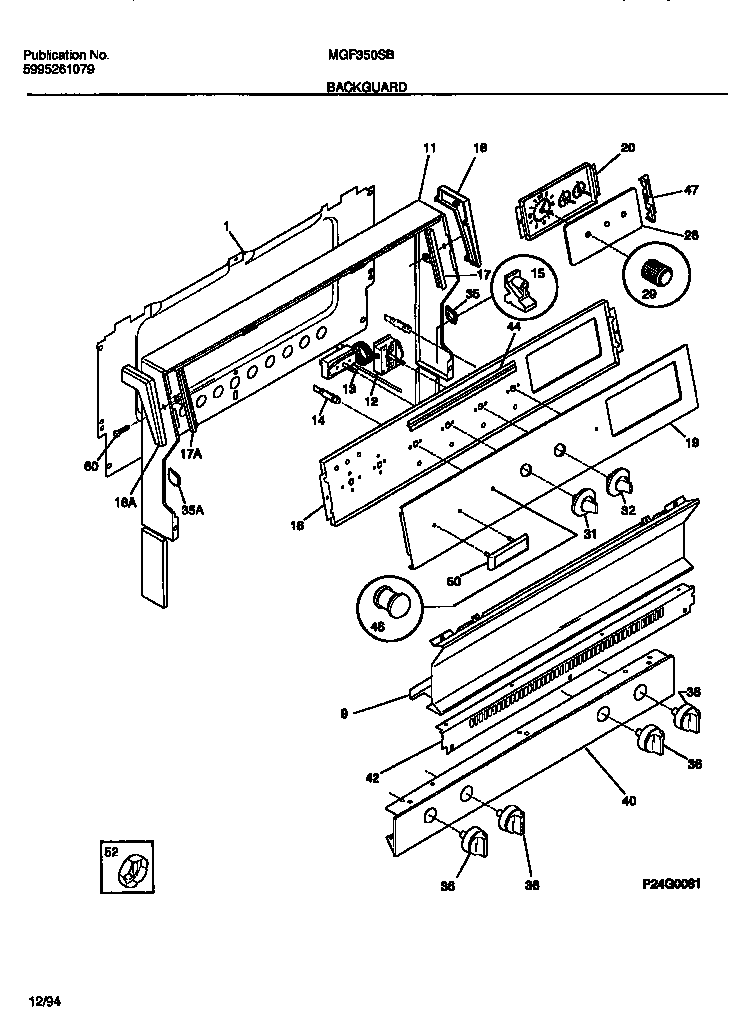

MGF350SBWA 02 – BACKGUARD

Products

PositionProduct
*60643316021105 Frigidaire Oven Screw
*60642WCI 316001433
*60644WCI 5303272555
*60641WCI 3204745
*60640RETAINER-LENS
*60645WCI 5303281584
1SHIELD-BACKGUARD,REAR WALL
9WCI 316043501
11WCI 3204755
12THERMOSTAT-BAKE
13SWITCH SELECTOR 5 POS
14WCI 5308037896
15SUPPORT-BACKGUARD,(2)
16WCI 316042601
17TRIM-GLASS RETAINER,RH
17ATRIM-GLASS RETAINER,LH
18WCI 3204747
18AWCI 3204746
19WCI 316034537
20WCI 3201694
26WCI 3201695
29WCI 316029000
31WCI 316016922
32WCI 316016822
35CAP-RH
35ACAP-LH
36KNOB-TOP VALVE, (4)
40WCI 316062328
42WCI 3131241
44WCI 3131468
46WCI 316065800
47RETAINER, CLOCK GLASS, (2)
50WCI 316067000
52NUT, TWIST
60SCREW-END CAP
