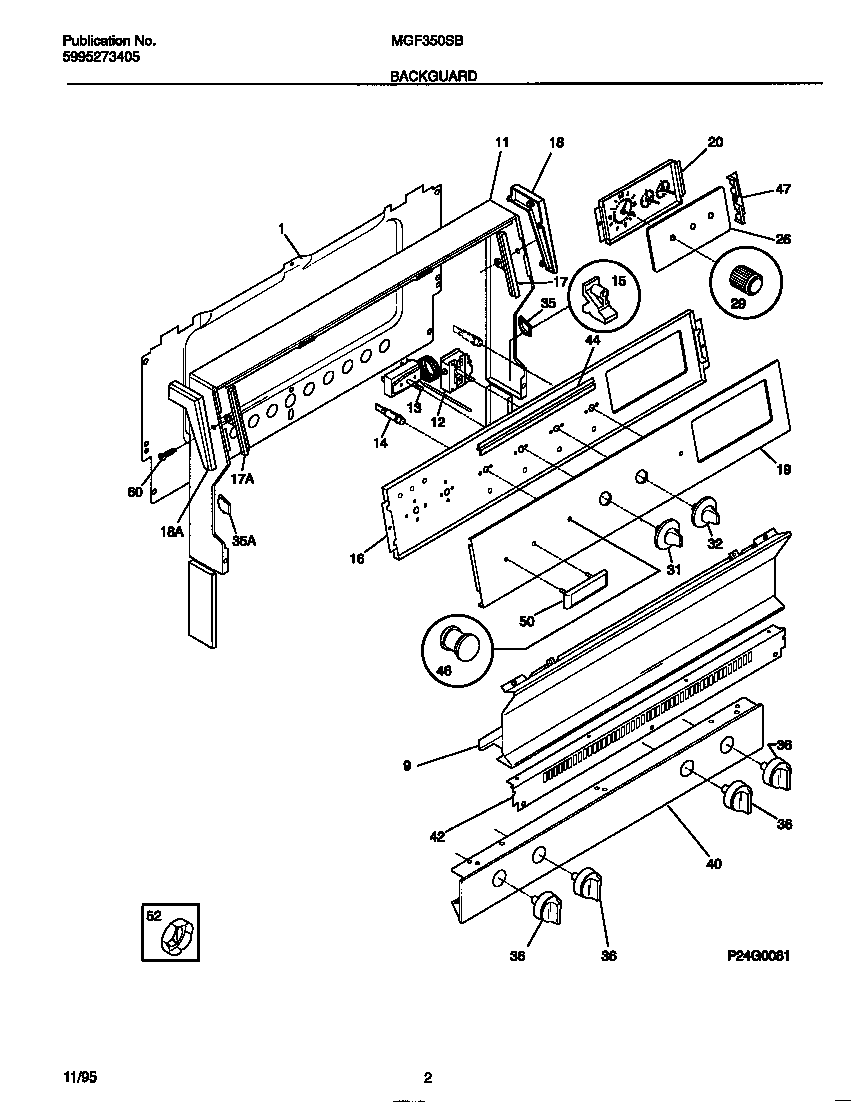

MGF350SBWB 02 – BACKGUARD

MGF350SBWB 02 – BACKGUARD

Written by

in

MGF350SBWB 02 – BACKGUARD

Products

PositionProduct
*51362316021105 Frigidaire Oven Screw
*51364WCI 5303281584
*51360WCI 3204745
*51363WCI 5303272555
*51361WCI 316001433
1SHIELD-BACKGUARD,REAR WALL
9WCI 316043501
11WCI 3204755
12THERMOSTAT-BAKE
13SWITCH SELECTOR 5 POS
14WCI 5308037896
15SUPPORT-BACKGUARD,(2)
16WCI 316042601
17TRIM-GLASS RETAINER,LH
17TRIM-GLASS RETAINER,RH
18WCI 5303272308
18WCI 5303272307
19WCI 316034537
20WCI 3201694
26WCI 3201695
29WCI 316029000
31WCI 316016922
32WCI 316016822
35CAP-LH
35CAP-RH
36KNOB-TOP VALVE, (4)
40WCI 316062328
42WCI 316084300
44WCI 3131468
46WCI 316065800
47RETAINER, CLOCK GLASS, (2)
50WCI 316067003
60WCI 5303289970
