MGF352BEDC 05 – TOP/DRAWER

MGF352BEDC 05 – TOP/DRAWER

Written by

in

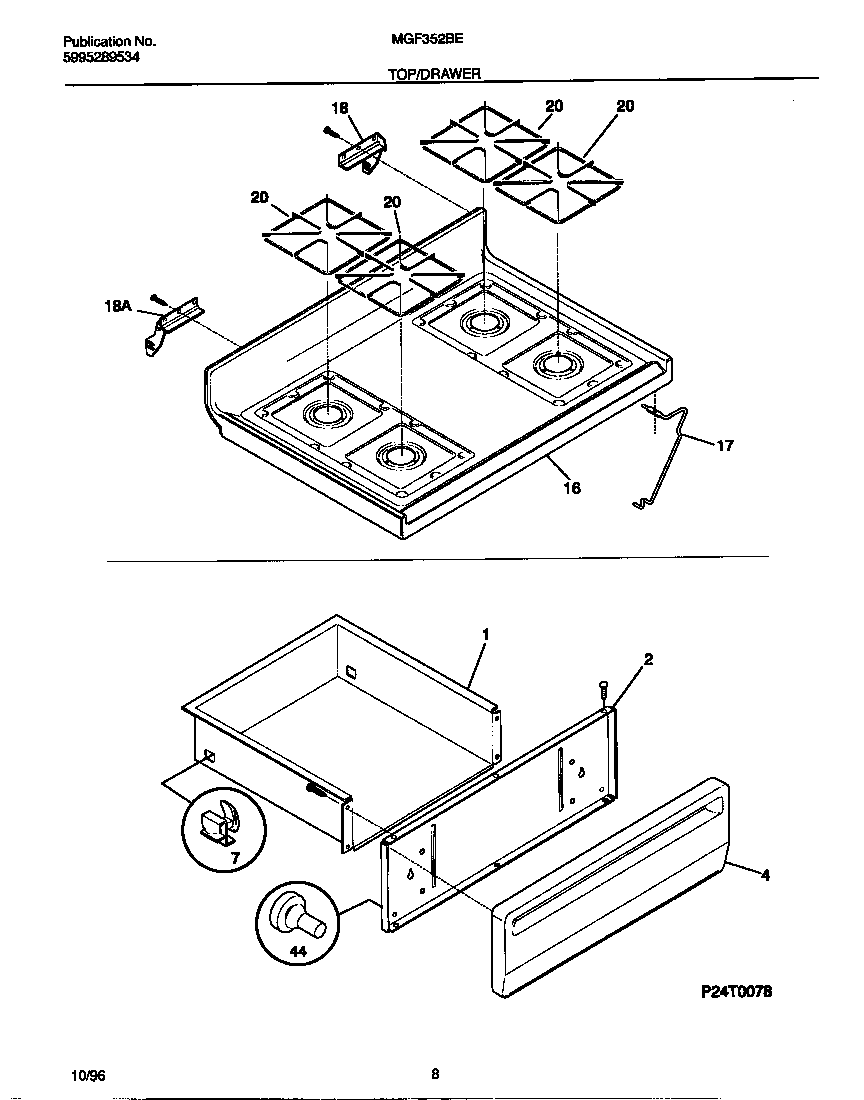

MGF352BEDC 05 – TOP/DRAWER

Products

PositionProduct
*03085RIVET-POP, WARING-PLATE
*03088131243700 Frigidaire Screw
*03087WCI 5303280311
*03086Screw,cup pt ,8-18 x 0.375 ,chrome
1DRAWER-UTILITY
2SHIELD-PNL
4316021109 Frigidaire Oven Screw
4WCI 316084406
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 5303285572
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
20WCI 316088900
443131903 Frigidaire Door/Drawer Bumper
