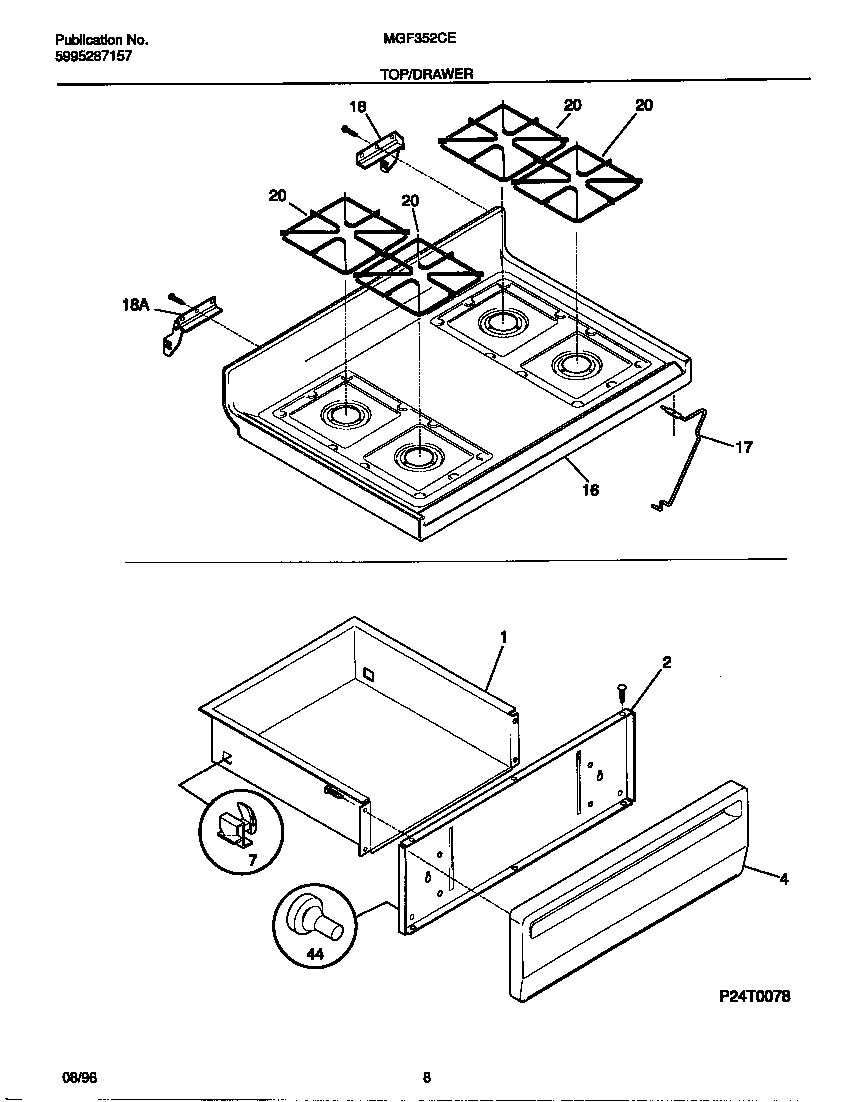

MGF352CESB 05 – TOP/DRAWER

Products

Position	Product
*06805	Screw,cup pt ,8-18 x 0.375 ,chrome
*06806	WCI 5303280311
*06807	131243700 Frigidaire Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	316021109 Frigidaire Oven Screw
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316084405
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 5303285552
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
18	RIVET-POP, WARING-PLATE
20	WCI 316088901
44	3131903 Frigidaire Door/Drawer Bumper
