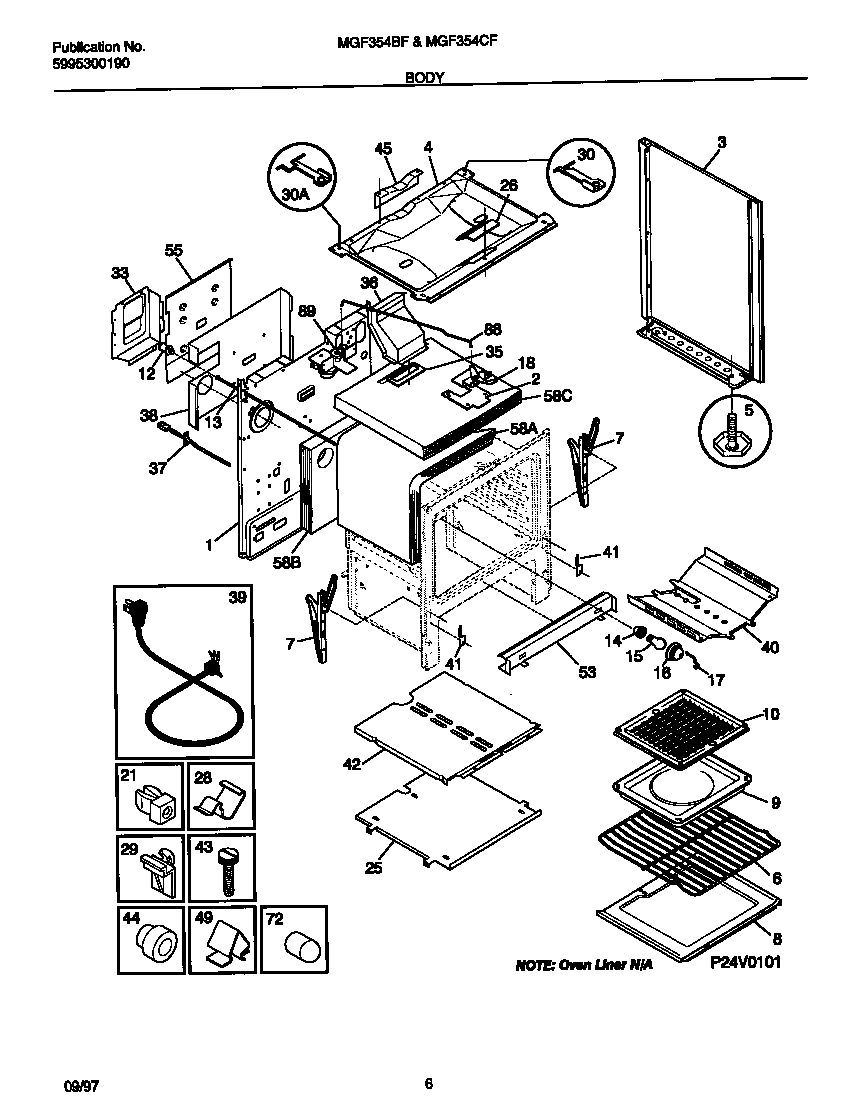

MGF354BFWB 04 – BODY

MGF354BFWB 04 – BODY

Written by

in

MGF354BFWB 04 – BODY

Products

PositionProduct
*10045WCI 08067961
*10046Screw,cup pt ,8-18 x 0.375 ,chrome
*10047WIRING HARNESS,CHASSIS
1WCI 316029412
2SHIELD-OVN TOP
3WCI 316081029
3WCI 316081028
3WCI 08067992
4WCI 316011912
5C316116000 Frigidaire Screw
5BWCI 3934058
5ASCREW-LEVELING
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7AWCI 316007002
7B3203010 Frigidaire Clip
8ABTTM-OVEN
8B316064600 Frigidaire Oven Support
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 5303288580
26WCI 08067757
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30WCI 316059201
30WCI 316059200
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316051700
395304515659 Frigidaire Oven Power Cord
40AWCI 3200836
40BSCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
41WCI 3131570
42WCI 5303288578
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
53B08067973 Frigidaire 0 Insulation
53AWCI 5303288579
55WCI 316052601
58INSULATION, OVEN WRAPPER
58INSULATION, OVEN TOP
58WCI 316054200
72COVER-LIGHT/SWITCH ROD
88WCI 316026400
89WCI 316028101
