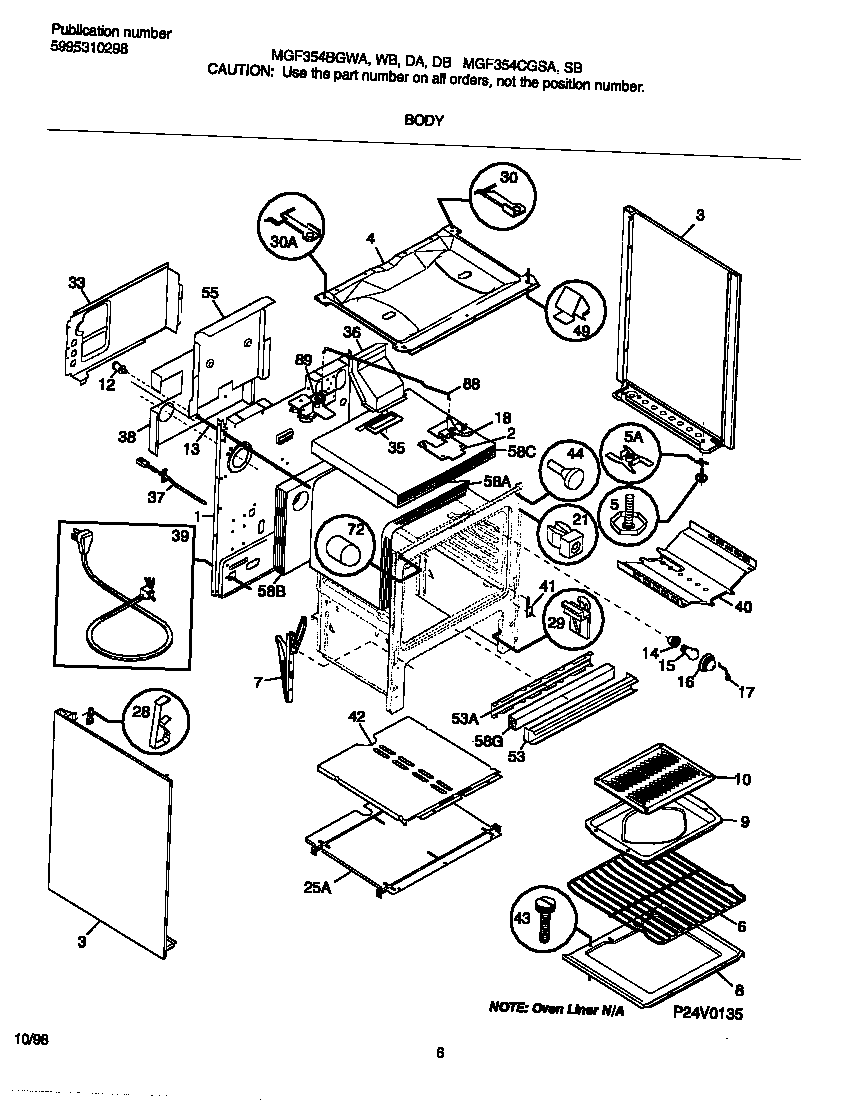

MGF354BGDA 04 – BODY

MGF354BGDA 04 – BODY

Written by

in

MGF354BGDA 04 – BODY

Products

PositionProduct
*648123203010 Frigidaire Clip
*64814WCI 08067961
*64818WCI 08067757
*64817Screw,cup pt ,8-18 x 0.375 ,chrome
*64815SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*64813316064600 Frigidaire Oven Support
*64810WCI 3934058
*64811316116000 Frigidaire Screw
*64808PANEL-BODYSIDE,ALMOND ,LH
*64816WIRING HARNESS,CHASSIS
*648193205821 Frigidaire Clip
1WCI 316029412
2SHIELD-OVN TOP
3WCI 316081030
4WCI 316011912
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007002
8BTTM-OVEN
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 5303288580
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30WCI 316059200
30WCI 316059201
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316051700
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41WCI 3131570
42WCI 5303288578
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
53WCI 08067992
53WCI 5303288579
55WCI 08068018
58INSULATION, OVEN WRAPPER
58WCI 316054200
5808067973 Frigidaire 0 Insulation
58INSULATION, OVEN TOP
72COVER-LIGHT/SWITCH ROD
88WCI 316026400
89WCI 316028101
