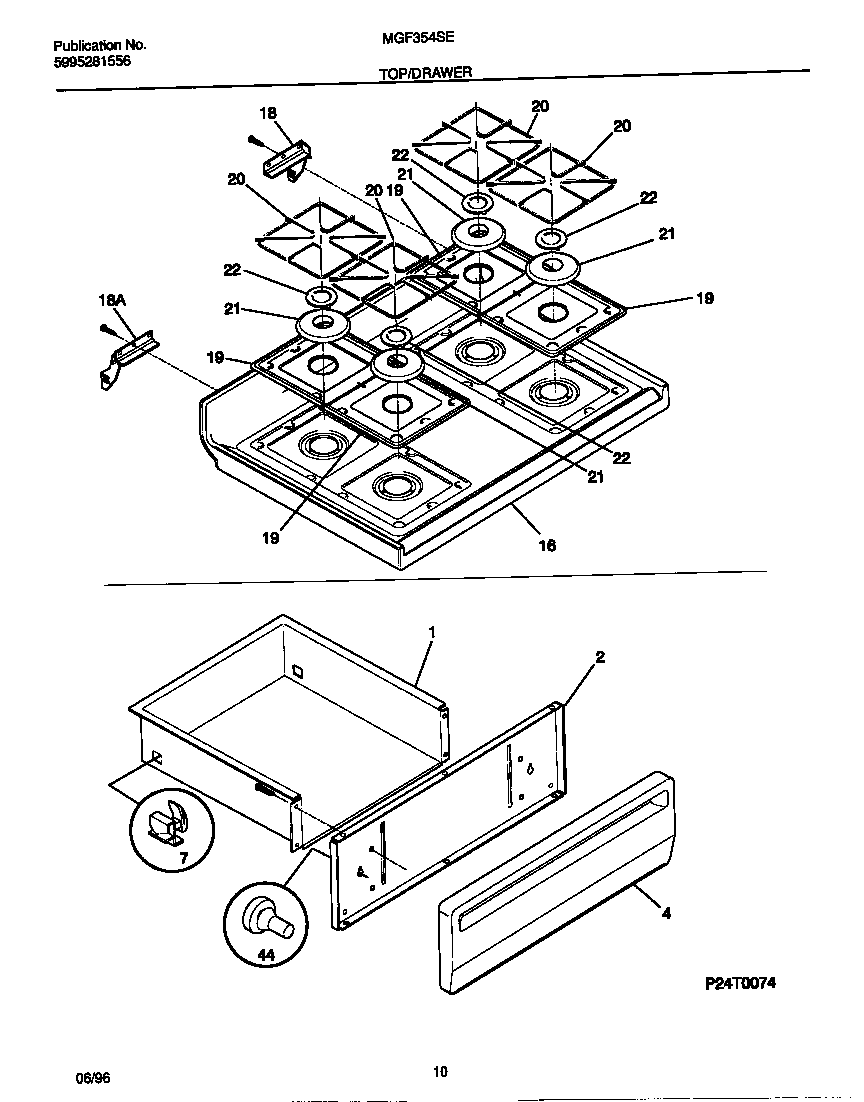

MGF354SEDA 06 – TOP/DRAWER

Products

Position	Product
*31446	RIVET-POP, WARING-PLATE
*31447	Screw,cup pt ,8-18 x 0.375 ,chrome
*31449	131243700 Frigidaire Screw
*31448	WCI 5303280311
1	DRAWER-UTILITY
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316084406
4	316021109 Frigidaire Oven Screw
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 5303301547
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
19	WCI 316011400
20	WCI 316088900
21	WCI 316035101
22	316010901 Frigidaire Burner Cap P1
44	3131903 Frigidaire Door/Drawer Bumper
