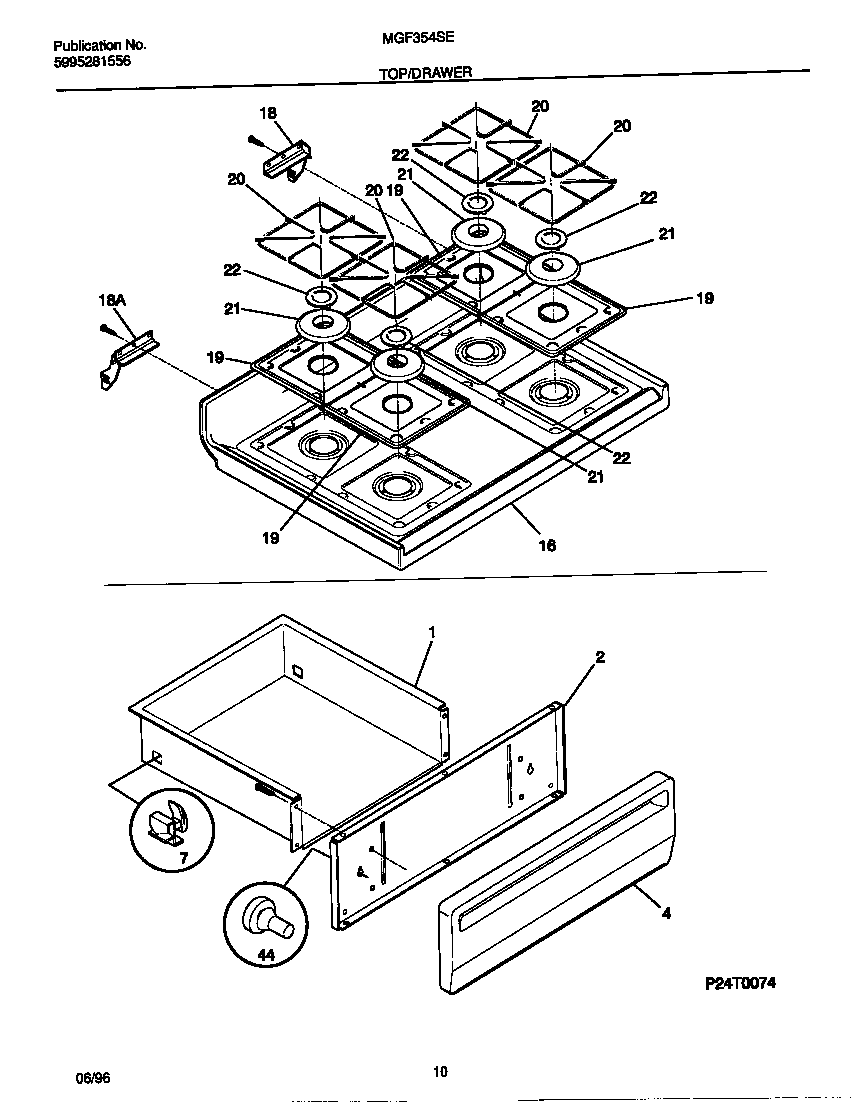

MGF354SEWB 06 – TOP/DRAWER

MGF354SEWB 06 – TOP/DRAWER

Written by

in

MGF354SEWB 06 – TOP/DRAWER

Products

PositionProduct
*31446RIVET-POP, WARING-PLATE
*31447Screw,cup pt ,8-18 x 0.375 ,chrome
*31449131243700 Frigidaire Screw
*31448WCI 5303280311
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084405
4316021109 Frigidaire Oven Screw
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
16WCI 5303301546
19WCI 316011400
20WCI 316088900
21WCI 316035101
22316010901 Frigidaire Burner Cap P1
443131903 Frigidaire Door/Drawer Bumper
