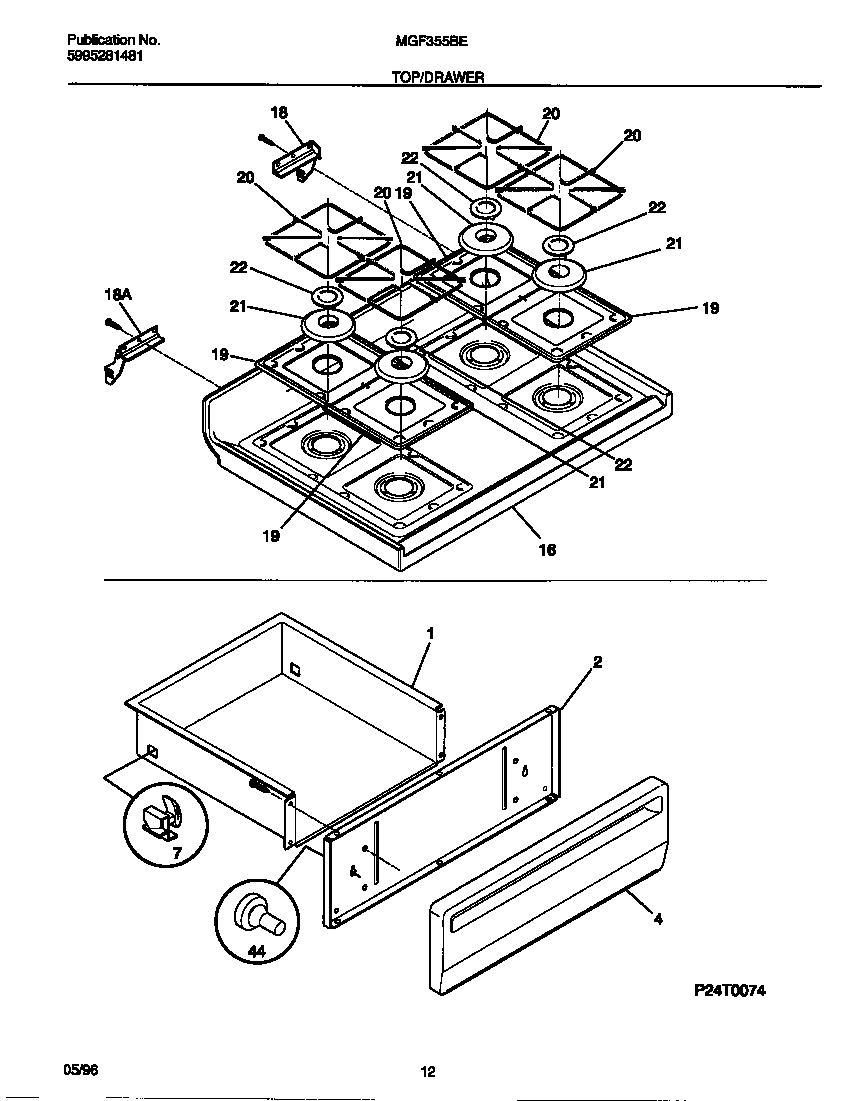

MGF355BEDA 06 – TOP/DRAWER

MGF355BEDA 06 – TOP/DRAWER

Written by

in

MGF355BEDA 06 – TOP/DRAWER

Products

PositionProduct
*16487RIVET-POP, WARING-PLATE
*16488Screw,cup pt ,8-18 x 0.375 ,chrome
*16490131243700 Frigidaire Screw
*16489WCI 5303280311
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084406
4316021109 Frigidaire Oven Screw
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 5303301547
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19WCI 316011400
20WCI 316088900
21WCI 316035101
22316010901 Frigidaire Burner Cap P1
443131903 Frigidaire Door/Drawer Bumper
