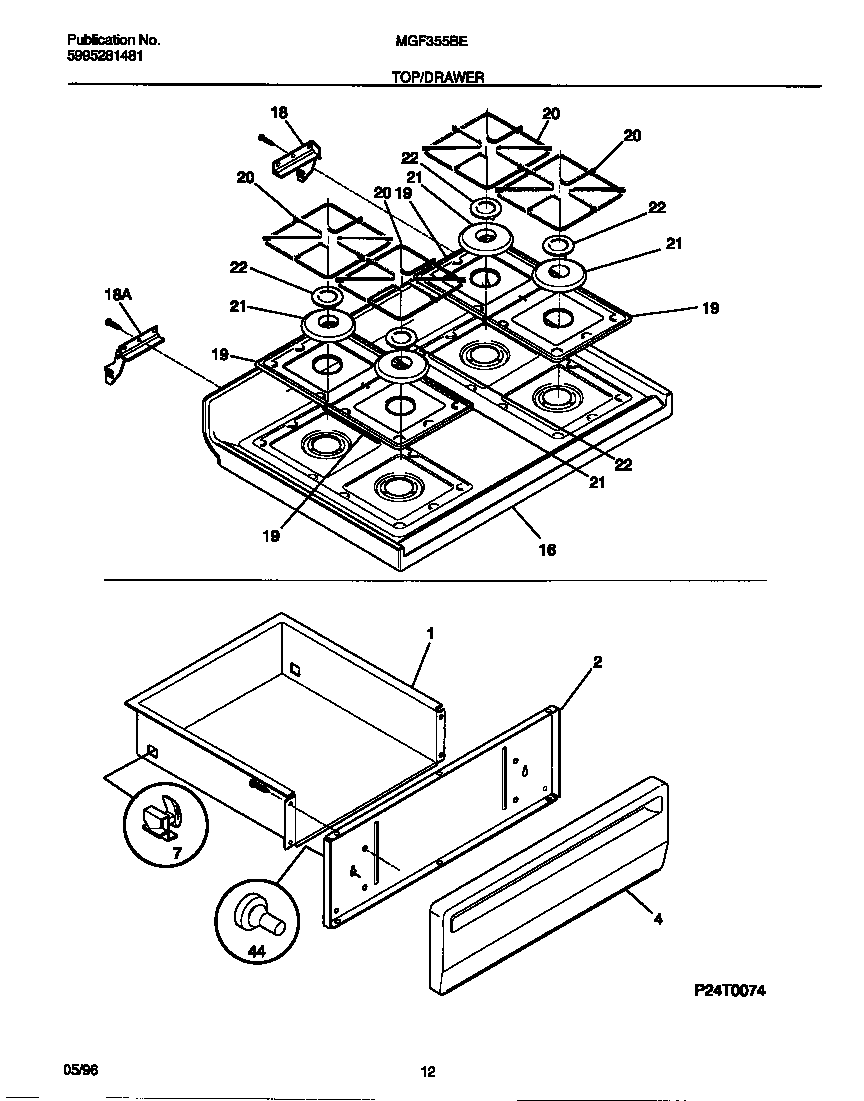

MGF355BEDB 06 – TOP/DRAWER
Written by
in
MGF355BEDB 06 – TOP/DRAWER
Products
Position
Product
*16487
RIVET-POP, WARING-PLATE
*16490
131243700 Frigidaire Screw
*16489
WCI 5303280311
*16488
Screw,cup pt ,8-18 x 0.375 ,chrome
1
DRAWER-UTILITY
2
SHIELD-PNL
4
316021109 Frigidaire Oven Screw
4
WCI 316084406
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7
3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16
WCI 5303301547
16B
GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A
GUSSET-MTG (RH) (NON-ILLUSTRATED)
19
WCI 316011400
20
WCI 316088900
21
WCI 316035101
22
316010901 Frigidaire Burner Cap P1
44
3131903 Frigidaire Door/Drawer Bumper
←
