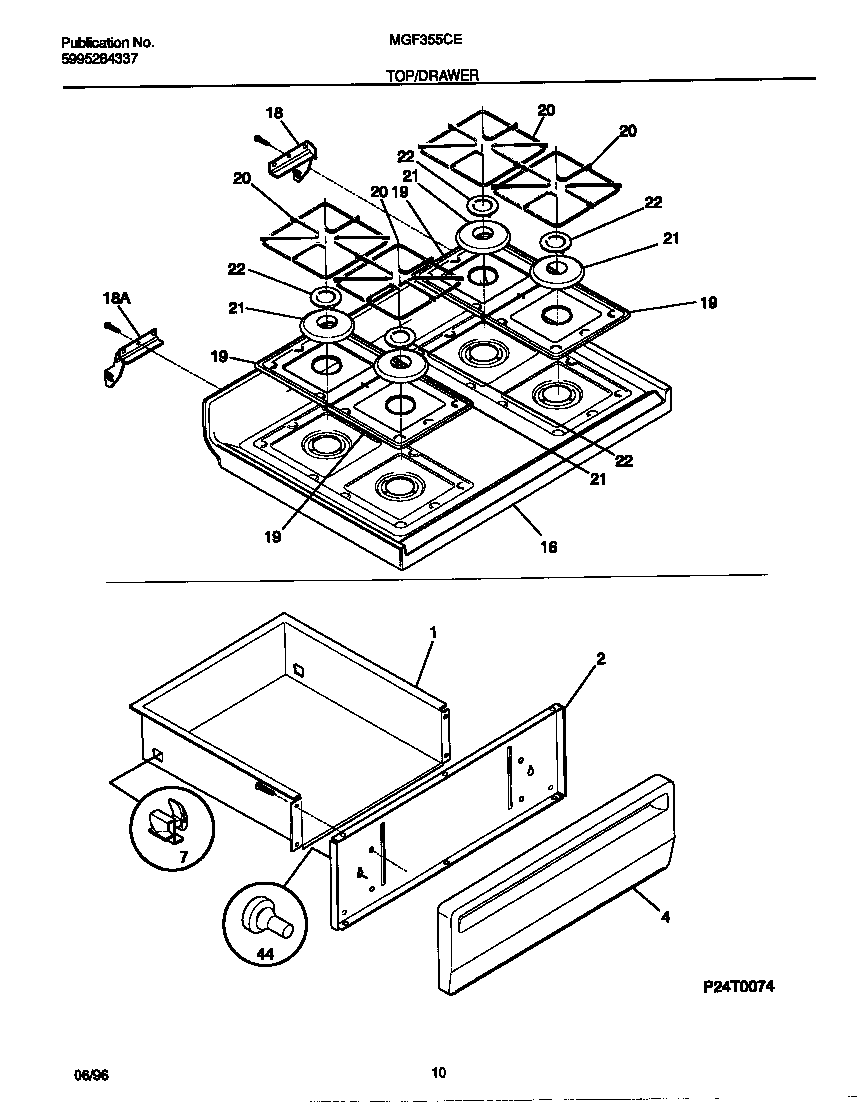

MGF355CESA 05 – TOP/DRAWER

Products

Position	Product
*09565	RIVET-POP, WARING-PLATE
*09568	131243700 Frigidaire Screw
*09567	WCI 5303280311
*09566	Screw,cup pt ,8-18 x 0.375 ,chrome
1	DRAWER-UTILITY
2	SHIELD-PNL
4C	316021109 Frigidaire Oven Screw
4A	WCI 316084405
4B	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16B	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16C	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A	WCI 5303301546
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
19	WCI 316011400
20	WCI 316088901
21	TRIM RING, BURNER, DARK GREY
22	WCI 316010903
44	3131903 Frigidaire Door/Drawer Bumper
