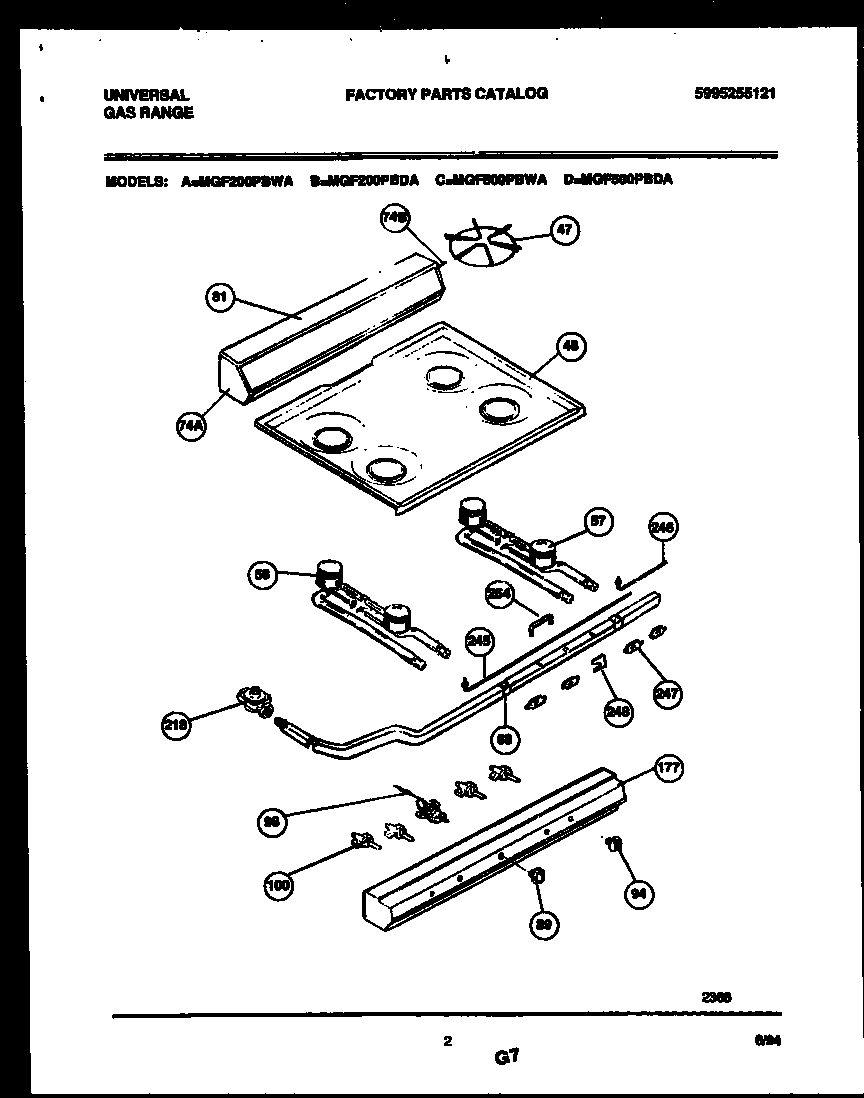

MGF500PBWA 02 – BACKGUARD, COOKTOP AND BURNER PARTS

MGF500PBWA 02 – BACKGUARD, COOKTOP AND BURNER PARTS

Written by

in

MGF500PBWA 02 – BACKGUARD, COOKTOP AND BURNER PARTS

Products

PositionProduct
*10452WCI 5303285962
*10452CLIP-BACKGUARD, TINNERMAN
*10452WCI 5303285789
*10452WCI 5303285950
47WCI 5303285720
48MAIN TOP, WHITE
57BURNER-TOP, FRONT
58BURNER-TOP, REAR
68WCI 5303285723
74BWCI 5303285715
74AWCI 5303285714
81BACKGUARD SHELL-ALMD
81PANEL-BACKGUARD, SHELL, WHITE
89WCI 5303285724
94KNOB-TOP VALVE
96WCI 5303285787
100WCI 5303285727
177PANEL-CONTROL, WHITE
177CONTROL PANEL-ALMD
2185308007974 Frigidaire Pressure Regulator
245SPARK-IGNITOR, LH
246SPARK-IGNITOR, RH
247SWITCH-IGNITOR, TOP BURNER
248SWITCH-IGNITOR, OVEN BURNER
254WCI 5303285777
