MGIMKS 01 – ICE MAKER KIT
Written by
in

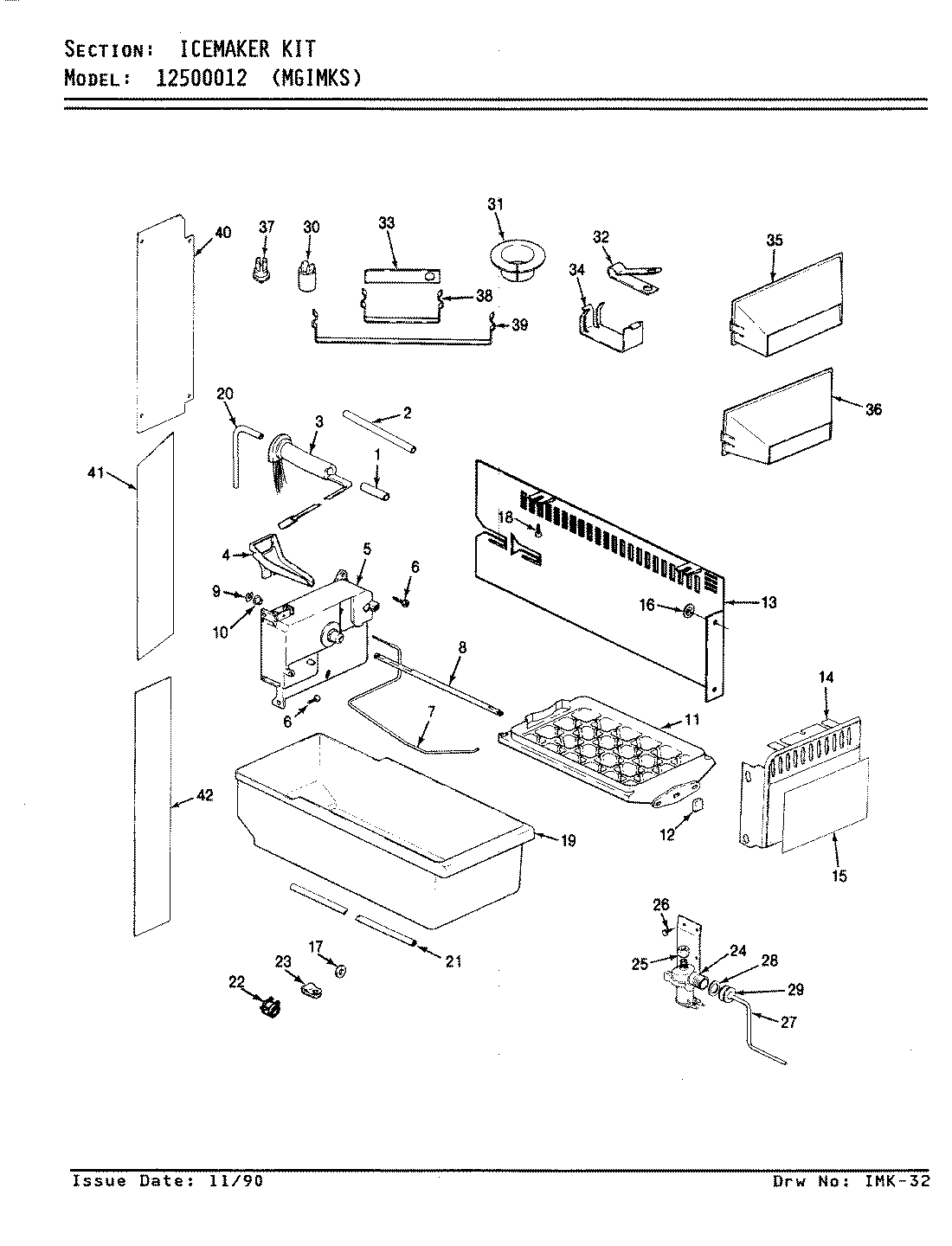

MGIMKS 01 – ICE MAKER KIT
Products
Position
Product
1
MAY 58461-3
2
MAY 58461-2
3
MAY 58397-3
3
MAY 400021-1
4
MAY 405009-103
4
MAY 53748-1
5
MAY RA43714-8
6
MAY 402068-103
7
MAY 52307-2
8
MAY 65319-1
9
MAY 58706-1
10
MAY 65317-1
11
WP59688-1A Whirlpool Refrigerator Tray
12
MAY 65318-1
13
MAY 59315-2
14
MAY 65069-6
15
MAY 65283-8
16
MAY 431033-501
17
MAY 420052-900
17
MAY 420051-900
18
MAY 400084-103
19
MAY 66592-1
20
MAY 66759-1
21
MAY 55602-4
22
MAY 60333-1
23
SCREW
23
W10833902 Whirlpool Refrigerator Clamp
24
MAY 55996-5
25
MAY 55419-1
26
MAY 401017-1
27
MAY 53855-3
28
MAY 24685-5
29
MAY 24685-1
30
MAY 19530-20
31
MAY 53122-4
32
MAY 23197-8
33
W11380570 Whirlpool Microwave Screw
33
MAY 58443-1
34
MAY 57112-1
35
MAY 65652-1
36
MAY 65653-1
37
MAY 53914-2
38
MAY 54674-1
39
MAY 54674-2
40
MAY 66378-1
41
MAY 66379-1
42
WP489478 Whirlpool Refrigerator Screw
42
MAY 66380-1
←
