MGR1320BDW 02 – CONTROL PANEL – Aparts

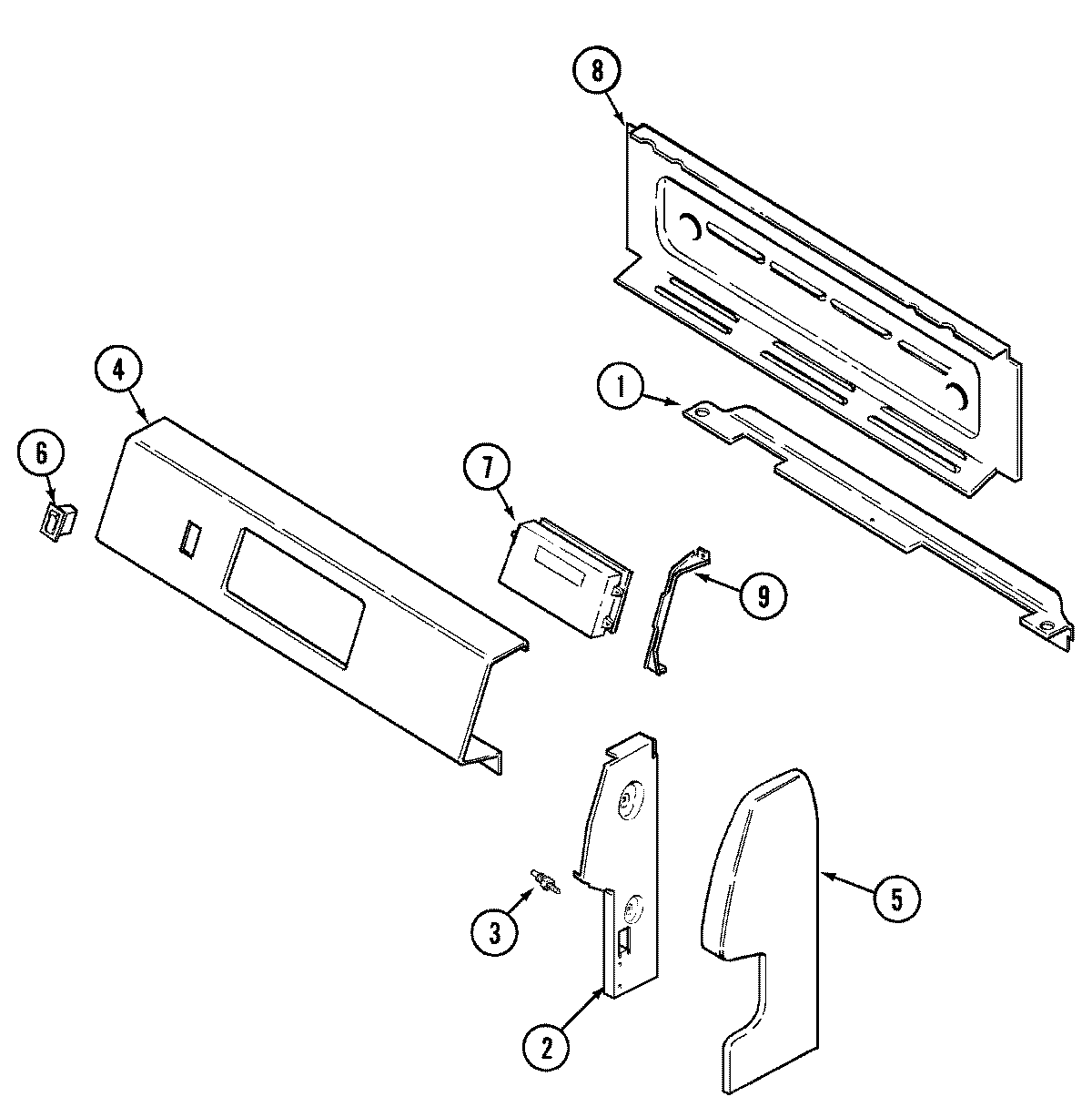

MGR1320BDW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 74005047
2	W10828565 Whirlpool Screw
2	MAY 74002402
2	MAY 74002403
3	MAY 74002404
4	MAY 74005262
5	MAY 74002439
5	WP98008544 Whirlpool Screw Assembly
5	MAY 74002438
5	MAY 74002451
6	MAY 7403P200-60
7	W10799767 Whirlpool Clock Timer
8	SCREW
8	MAY 74005146
9	MAY 74002449
9	MAY 7101P348-60
10	MAY 74005147
11	MAY 16008701
11	MAY 74005263
12	MAY 16010161
