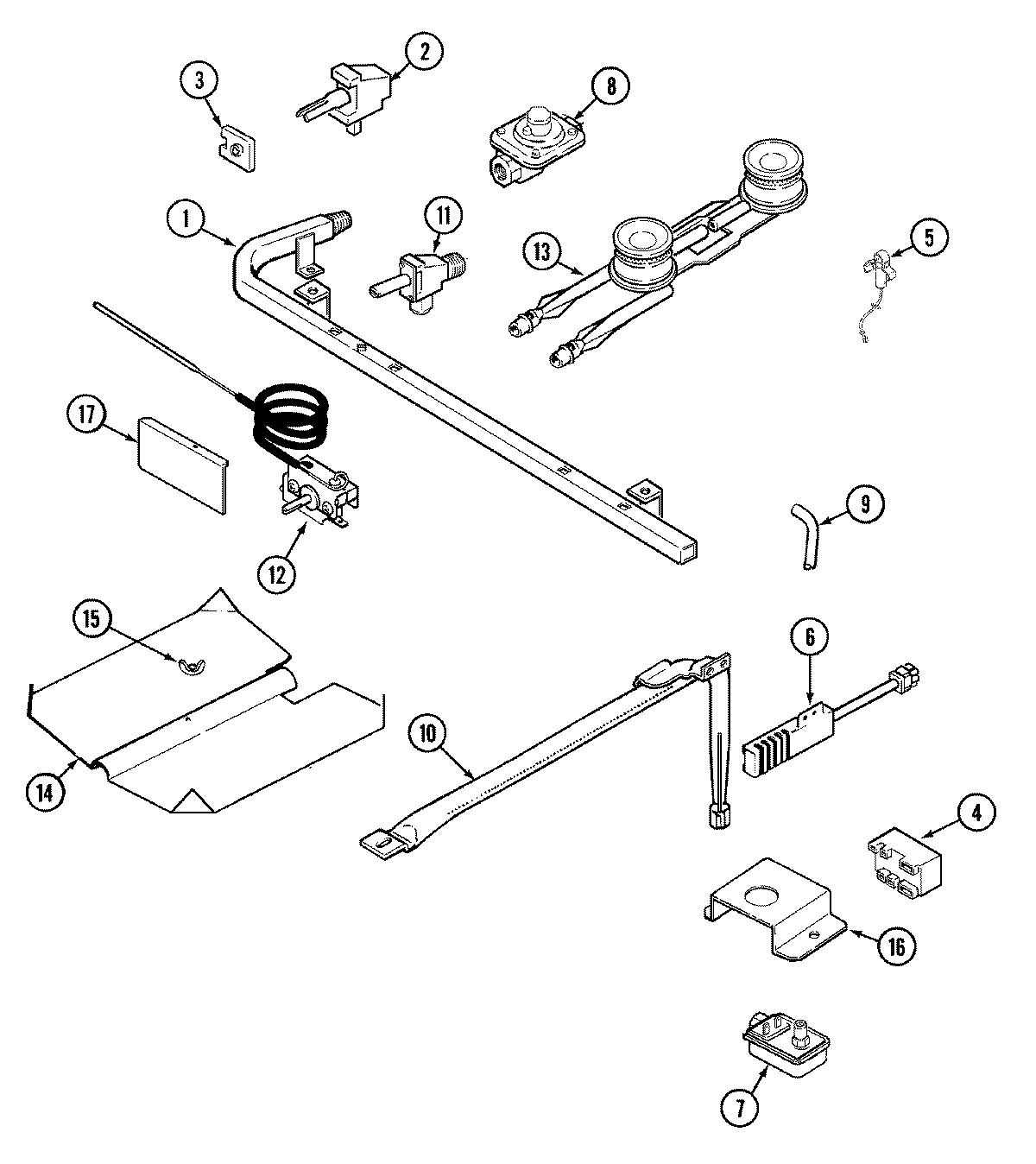

MGR2320ADW 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74003913
1	MAY 74002382
2	MAY 74002383
3	MAY 74002384
4	MAY 7431P006-60
5	MAY 74002385
5	MAY 74002386
6	WP3351614 Whirlpool Screw
6	MAY 7432P076-60
7	MAY 74002387
8	MAY 7510P049-60
9	MAY 74002456
10	MAY 74002434
11	MAY 7101P044-60
11	12002280 Whirlpool Oven Valve Kit and Screw
12	MAY 7101P280-60
12	WP74002390 Whirlpool Oven Thermostat
13	MAY 74002392
13	SCREW (8BX3/8-NI)
14	MAY 74002393
15	NUT, WING
16	MAY 74002394
17	SCREW
17	MAY 74002391
18	MAY 74002457
18	MAY 74002363
18	MAY 74002362
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
