MGR4410ADH 04 – GAS CONTROLS
Written by
in

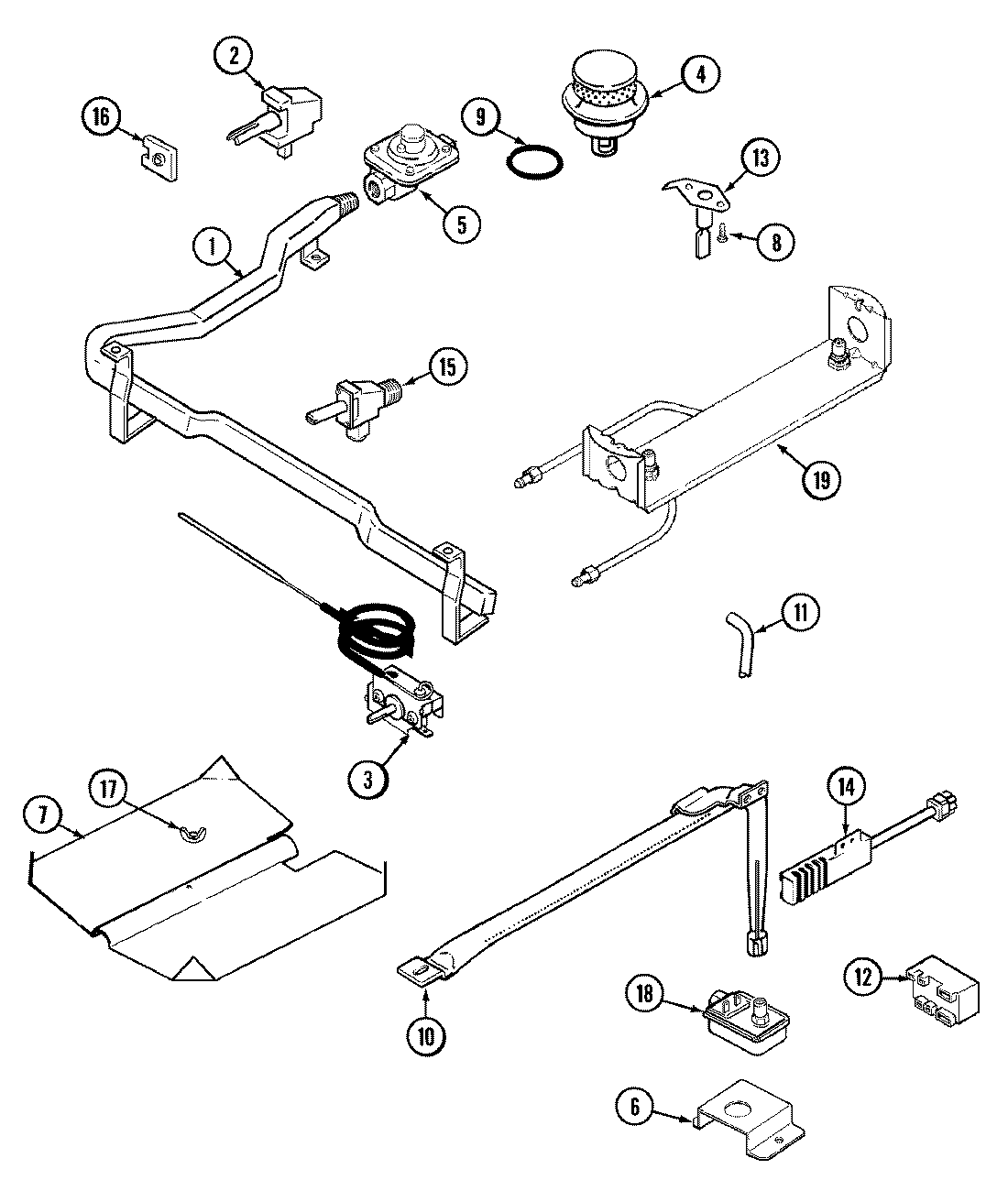

MGR4410ADH 04 – GAS CONTROLS
Products
Position
Product
1
MAY 74003795
2
MAY 74002532
2
WP8273096 Whirlpool Screw
3
MAY 7404P096-60
3
MAY 7101P280-60
4
MAY 3412D018-09
5
MAY 7510P049-60
6
MAY 74002394
7
MAY 74002393
8
MAY Y707113
9
MAY 7201P050-60
10
SCREW
10
MAY 74002434
11
MAY 1555251
11
MAY 74002456
12
MAY 74003288
12
8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
13
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14
MAY 7432P076-60
14
WP3351614 Whirlpool Screw
15
MAY 7101P044-60
15
12002280 Whirlpool Oven Valve Kit and Screw
16
MAY 74002533
17
NUT, WING
18
MAY 74002387
19
12001075 Whirlpool Oven Orifice and Tube Kit
19
MAY 5187D028-60
20
MAY 74002457
20
MAY 74004231
20
MAY 12001209
20
MAY 74002362
←
