MGR4410ADL 05 – OVEN/BASE

MGR4410ADL 05 – OVEN/BASE

Written by

in

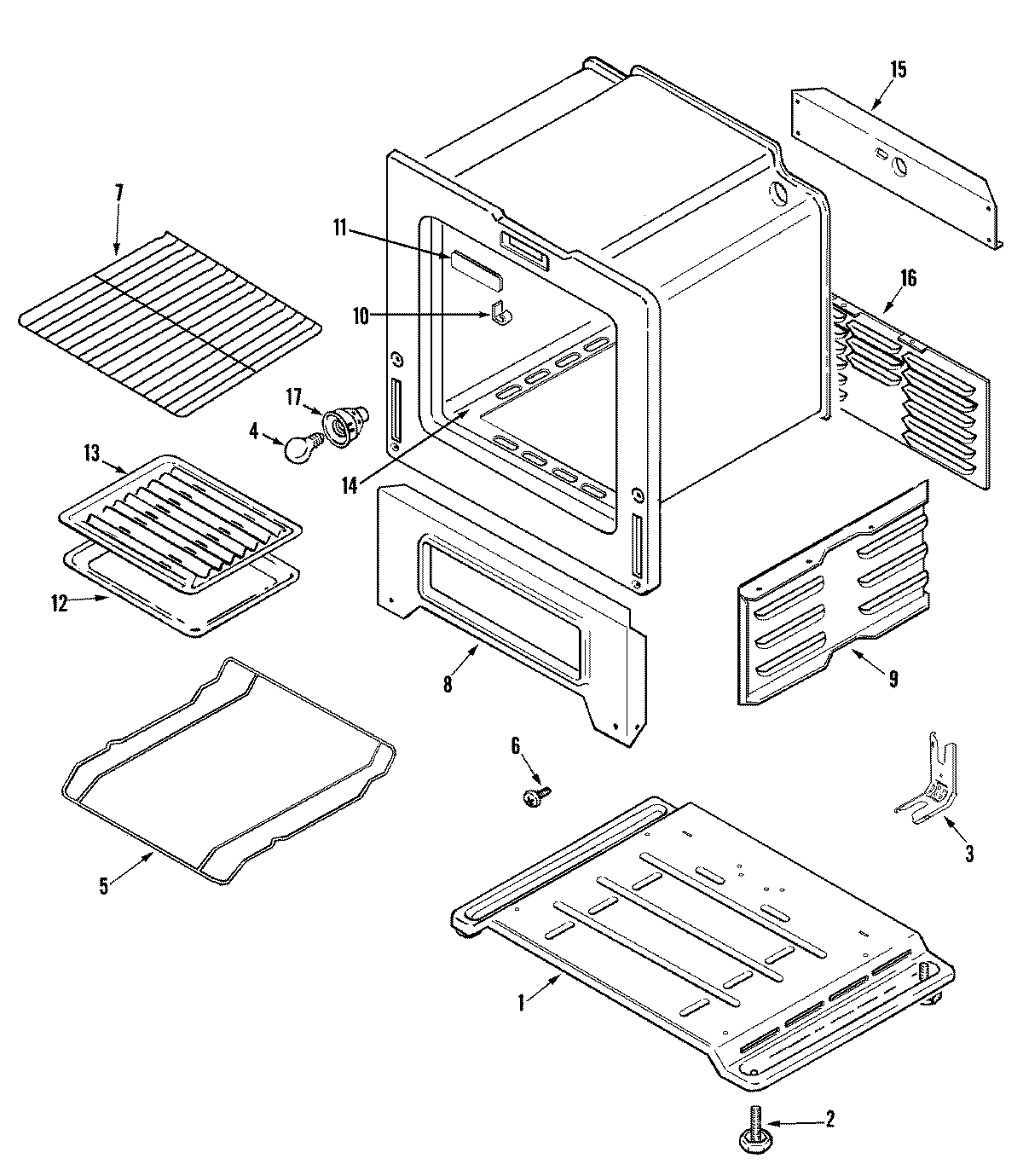

MGR4410ADL 05 – OVEN/BASE

Products

PositionProduct
1MAY 74002372
2W11665456 Whirlpool Range Level Foot
3MAY 74002311
3MAY 7101P344-60
4RANGE ONLY 40W 120V APPL BULB
4MAY 74003388
5MAY 74002381
6WP74003976 Whirlpool Screw
7WPW10282492 Whirlpool Oven Rack
8MAY 74002327
9MAY 74002375
9MAY 74002374
10WP7112P004-60 Whirlpool Thermal Clip
11MAY 7718P013-60
12MAY Y3401F02019
13MAY Y3413F01619
14MAY 74002376
14MAY 74002377
15MAY 74002378
16MAY 74002379
17MAY 74003387
17SCREW
17MAY 74003125
