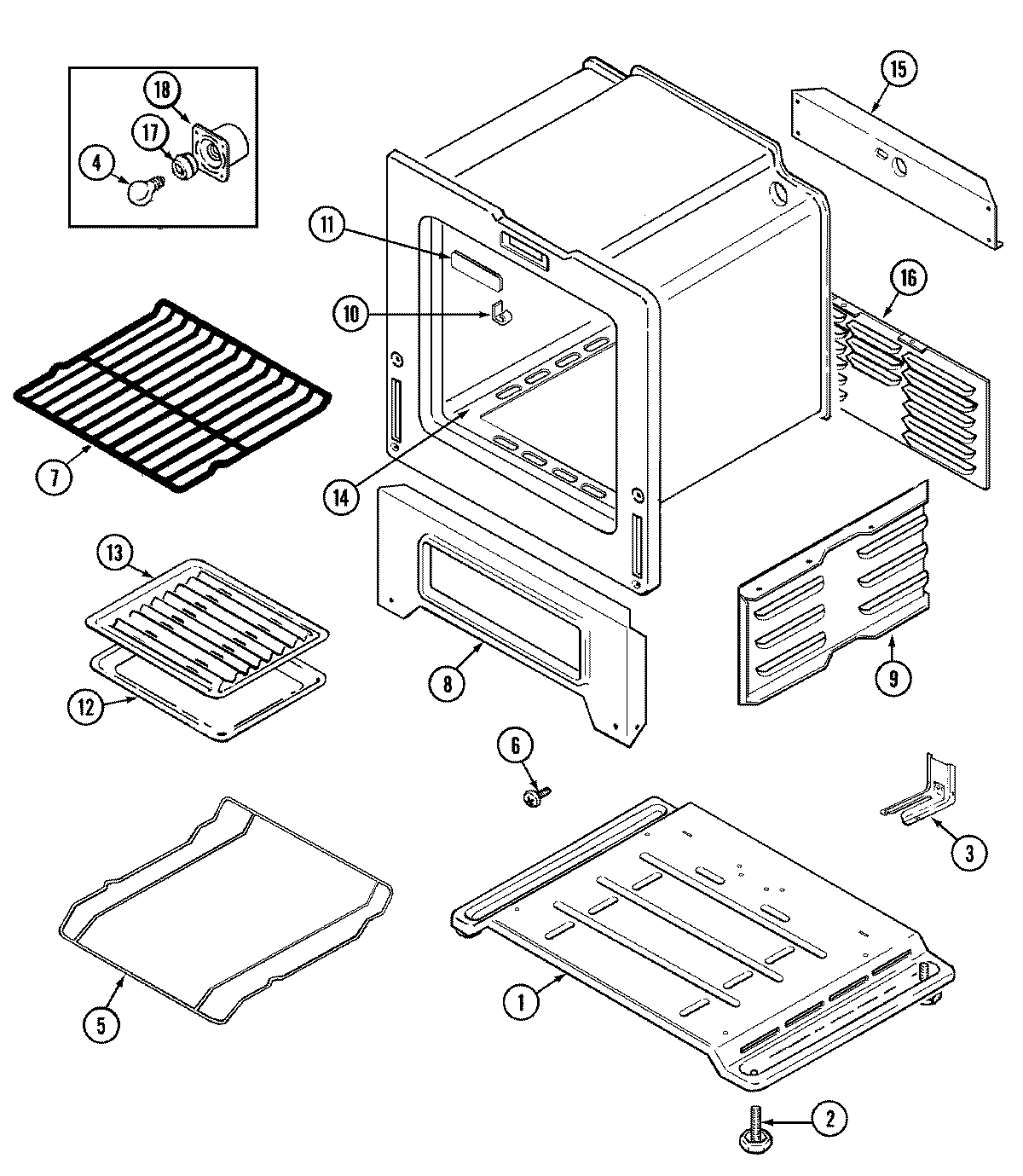

MGR4410BDA 04 – OVEN/BASE

MGR4410BDA 04 – OVEN/BASE

Written by

in

MGR4410BDA 04 – OVEN/BASE

Products

PositionProduct
1MAY 74001064
2W11665456 Whirlpool Range Level Foot
3WP7101P485-60 Whirlpool Anchor Tip
3MAY 74002311
4RANGE ONLY 40W 120V APPL BULB
5MAY 74002381
6SCREW (8ABX1/2“-BLK)
7WPW10282492 Whirlpool Oven Rack
8MAY 74003007
9MAY 74002374
9MAY 74002375
10WP7112P004-60 Whirlpool Thermal Clip
11PLUG, LOCK SLOT
12MAY Y3401F02019
13MAY Y3413F01619
14MAY 74002376
14MAY 74002377
15MAY 74002378
16MAY 74002379
17MAY 74003387
17SCREW
18MAY 74003388
