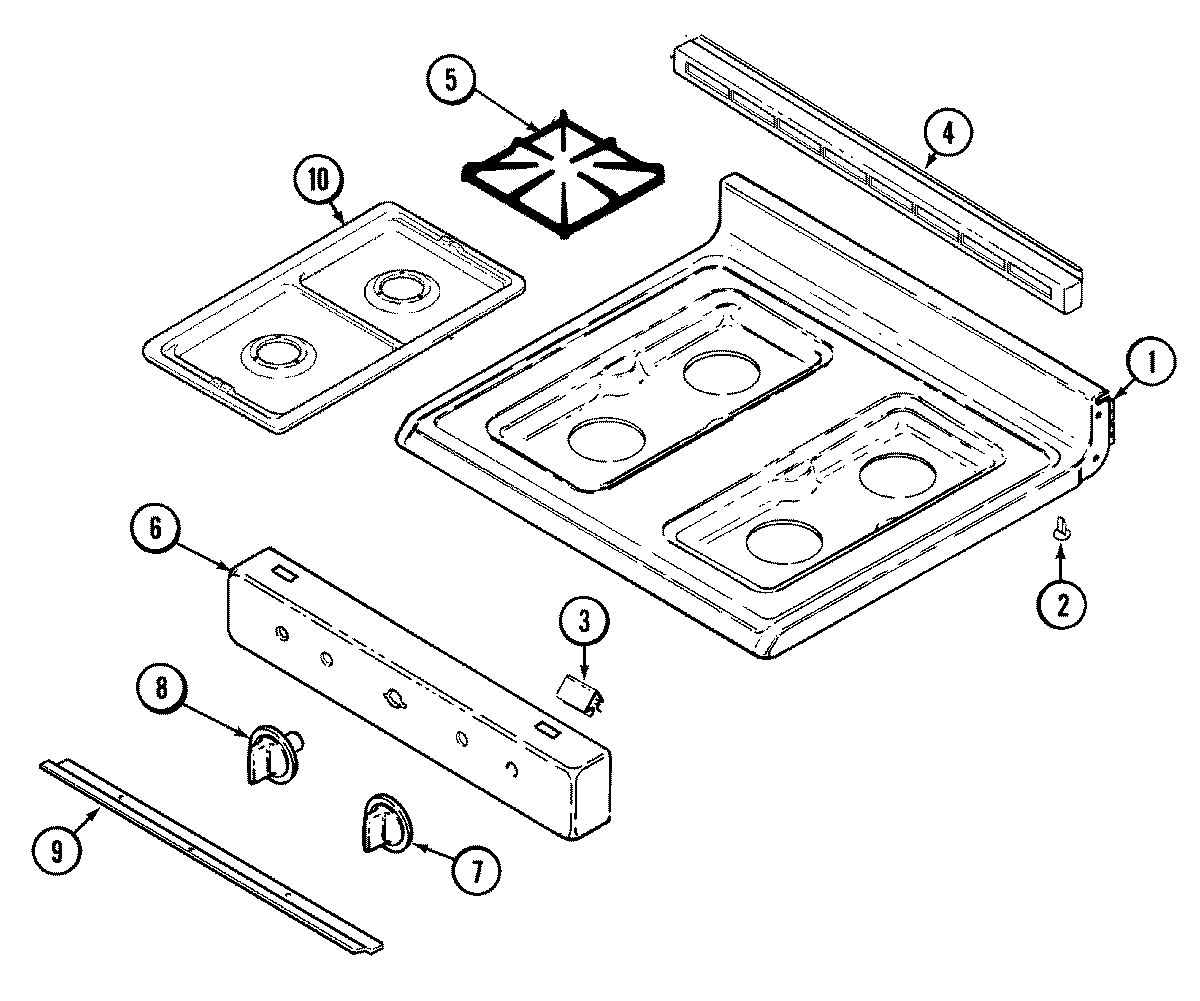

MGR4411BDQ 06 – TOP ASSEMBLY

MGR4411BDQ 06 – TOP ASSEMBLY

Written by

in

MGR4411BDQ 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74004964
1MAY 74001428
2MAY 8016P015-60
3MAY 74004827
4MAY 74003520
4SCREW (10ABX1/4P TR ZN)
5MAY 74003514
6MAY 7101P074-60
6SCREW (8BX3/8-NI)
6MAY 74006781
7MAY 74005091
7MAY 74005092
8MAY 74005093
9SCREW
9MAY 74002447
10MAY 5401A452-60
