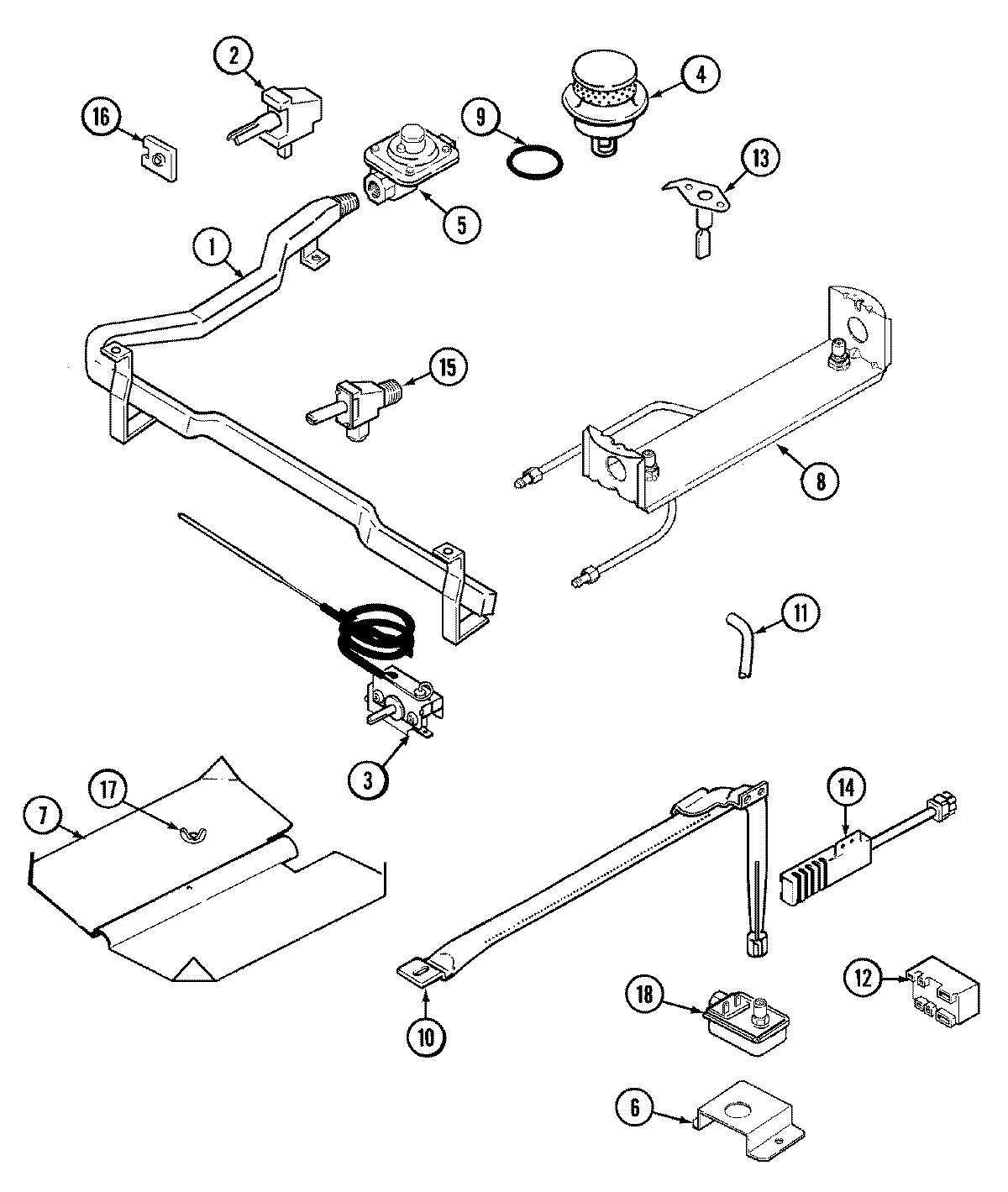

MGR4450BDA 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74003850
2	MAY 74003925
2	MAY 74002532
2	WP8273096 Whirlpool Screw
3	MAY 7404P096-60
3	MAY 7101P280-60
4	MAY 74003966
5	MAY 7510P049-60
6	MAY 74002394
7	MAY 74002393
8	MAY 5187D030-60
8	MAY 5187D031-60
10	MAY 74002434
10	SCREW
11	MAY 74002456
11	MAY 1555251
12	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
13	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14	MAY 7432P075-60
14	SCREW (10-24X5/16-NI)
15	12002280 Whirlpool Oven Valve Kit and Screw
15	MAY 71003231
16	MAY 74002533
16	WP7403P287-60 Whirlpool Igniter Switch
17	NUT, WING
18	MAY 74005329
18	MAY 74002387
19	MAY 12001209
19	MAY 74004231
19	MAY 74002457
