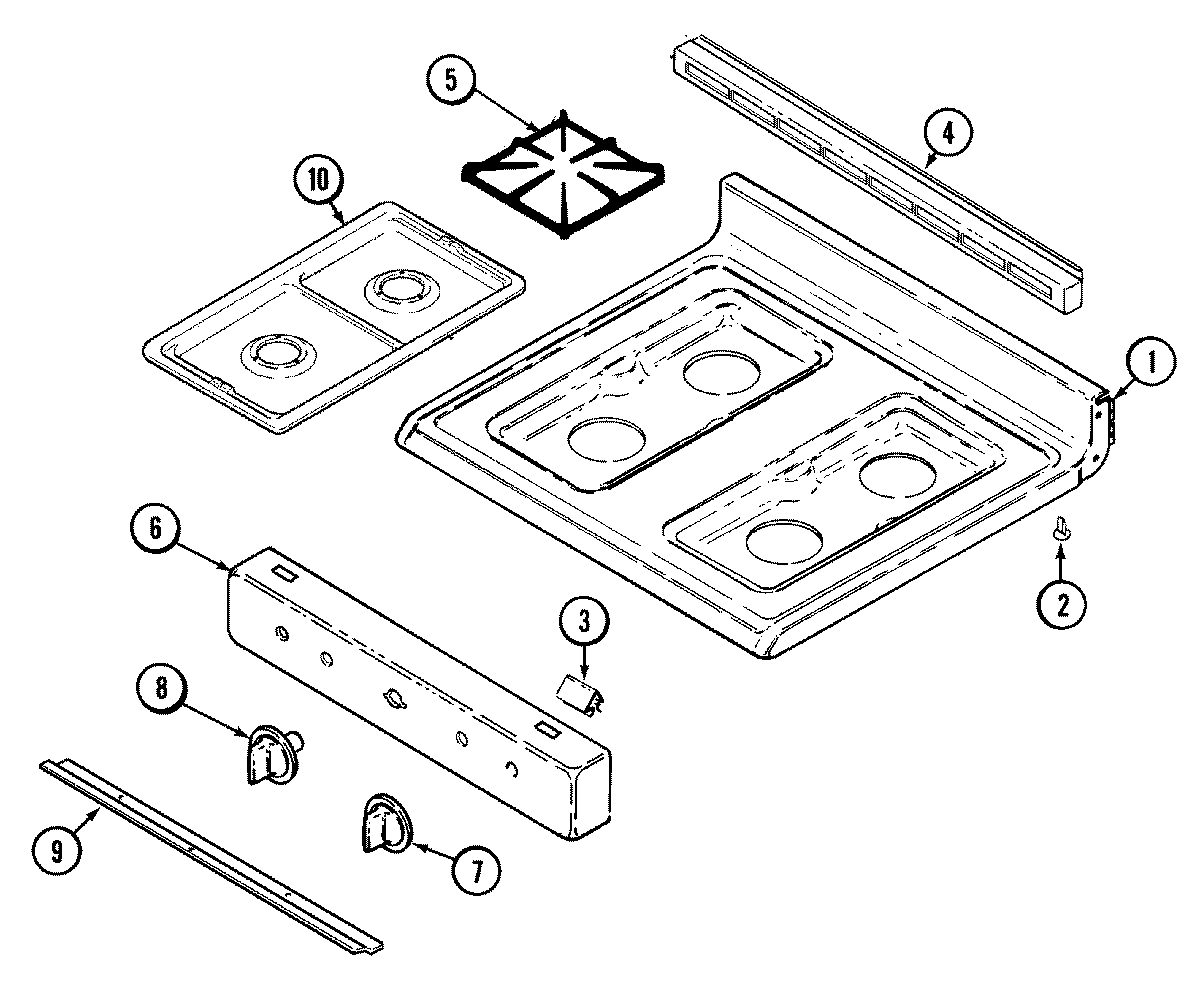

MGR4450BDW 06 – TOP ASSEMBLY

MGR4450BDW 06 – TOP ASSEMBLY

Written by

in

MGR4450BDW 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74003512
1MAY 74001428
2MAY 8016P015-60
3MAY 7112P087-60
4MAY 74003519
4SCREW (10ABX1/4P TR ZN)
5MAY 74001061
6MAY 7101P074-60
6MAY 74003848
6SCREW (8BX3/8-NI)
7MAY 74004651
7MAY 74004650
7MAY 74005092
7MAY 74005091
8MAY 74005093
8MAY 74004649
9MAY 74002447
9SCREW
10MAY 5401A452-60
