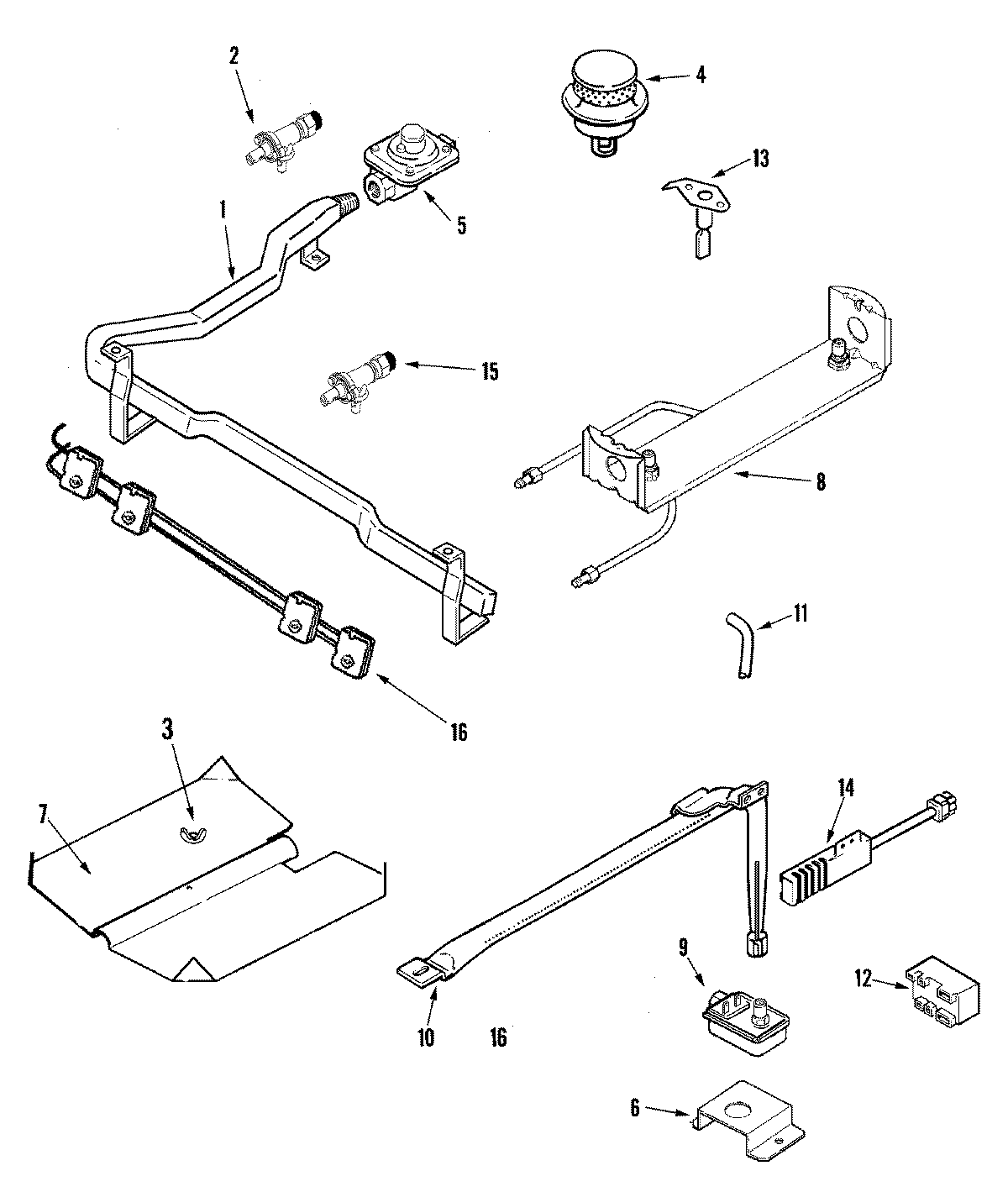

MGR4451ADB 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74009886
2	MAY 74009770
2	MAY 74009462
3	NUT, WING
4	WP3412D024-09 Whirlpool Oven Burner Head
4	WP3412D021-09 Whirlpool Burner Assembly
5	MAY 74006282
6	MAY 74005051
7	MAY 74002393
8	MAY 74009832
8	WP5787D105-60 Whirlpool Orifice
9	MAY 74009416
9	MAY 74009891
10	MAY 74002434
10	SCREW
11	MAY 74006417
12	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
13	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
13	MAY 74004410
14	SCREW (10-24X5/16-NI)
14	74007498 Whirlpool Range Flat Igniter
15	MAY 74009427
15	MAY 74009460
16	WPW10180490 Whirlpool Wire Harness
17	WP7509P129-60 Whirlpool Conversion Kit
