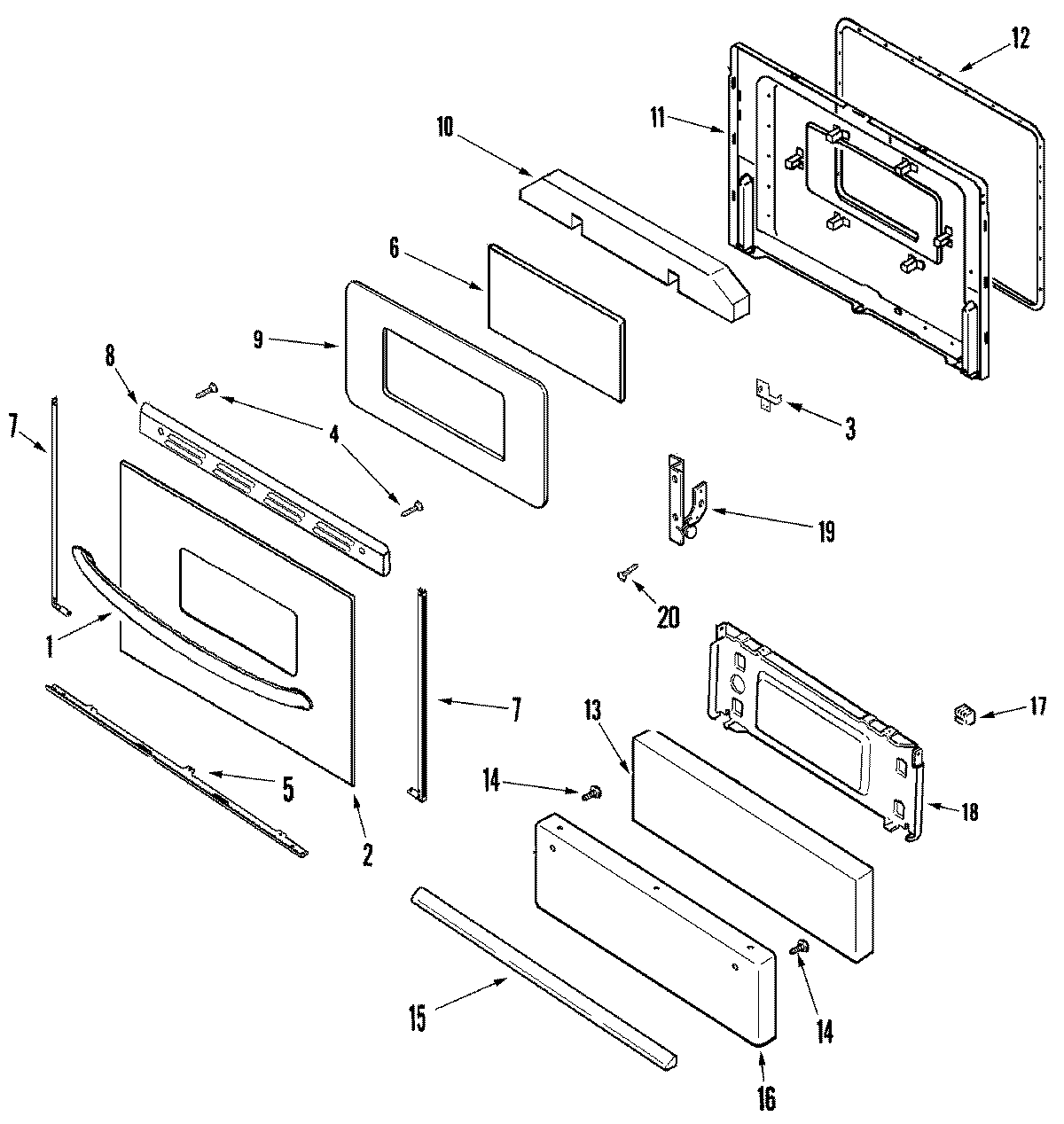

MGR4451ADQ 03 – DOOR/DRAWER

MGR4451ADQ 03 – DOOR/DRAWER

Written by

in

MGR4451ADQ 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74011107
1MAY 74009185
2MAY 74009728
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
4WP74006515 Whirlpool Washer Screw
4WP98008545 Whirlpool Screw
5SUPPORT, GLASS (BSQ)
6MAY 74002002
7TRIM, DOOR (BSQ-LT)
7WP74009014 Whirlpool Double Tape
7TRIM, DOOR (BSQ-RT)
8MAY 74009691
9MAY 74002461
9MAY 7101P209-60
10MAY 74002458
11MAY 74005097
12WP7212P043-60 Whirlpool Oven Door Seal Gasket
13MAY 74001814
14WP74009541 Whirlpool Screw Assembly
15MAY 74007089
16MAY 74005046
16SCREW
17MAY 74001663
18MAY 74007553
20MAY 74009897
