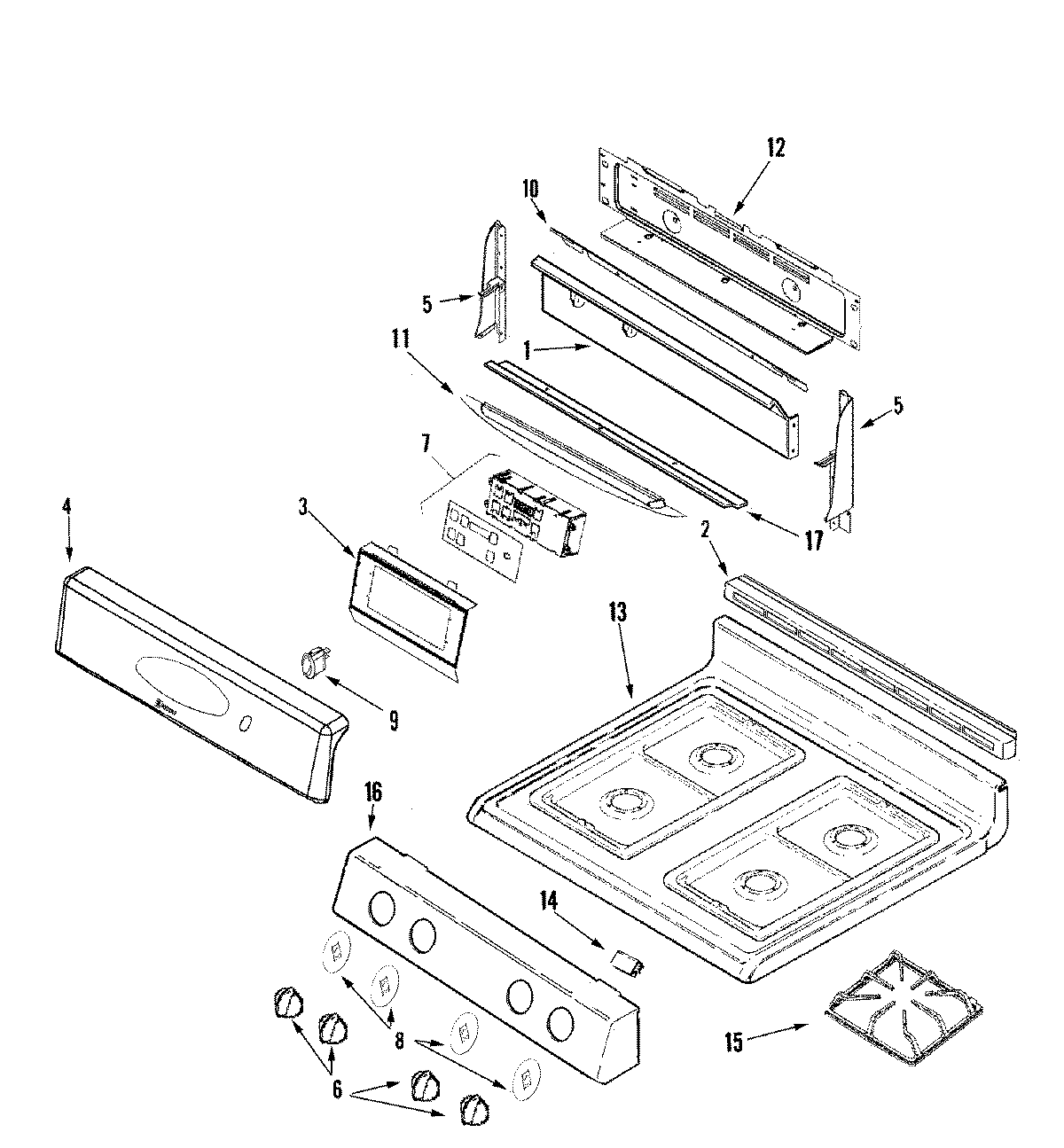

MGR4451ADS 02 – CONTROL PANEL/TOP ASSEMBLY

MGR4451ADS 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR4451ADS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 7101P147-60
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
4MAY 74010455
4MAY 74009108
5MAY 74009670
5WP98008545 Whirlpool Screw
5MAY 74009673
6KNOB (BLK)
7MAY 74009908
7WP74003976 Whirlpool Screw
8MAY 74009846
97403P985-60 Whirlpool Rocker Switch (Black)
10MAY 74009708
11MAY 74009801
11MAY 74009800
12MAY 74010804
12MAY 74006536
12MAY 71001394
12WP90767 Whirlpool Screw
13W11189172 Whirlpool Glide Drawer
13WP74005546 Whirlpool RU Spacer
13MAY 71003047
14MAY 74004827
15WP7518P464-60 Whirlpool Burner Grate
16MAY 74009828
17SCREW
17MAY 74002447
