MGR4451ADW 03 – DOOR/DRAWER

MGR4451ADW 03 – DOOR/DRAWER

Written by

in

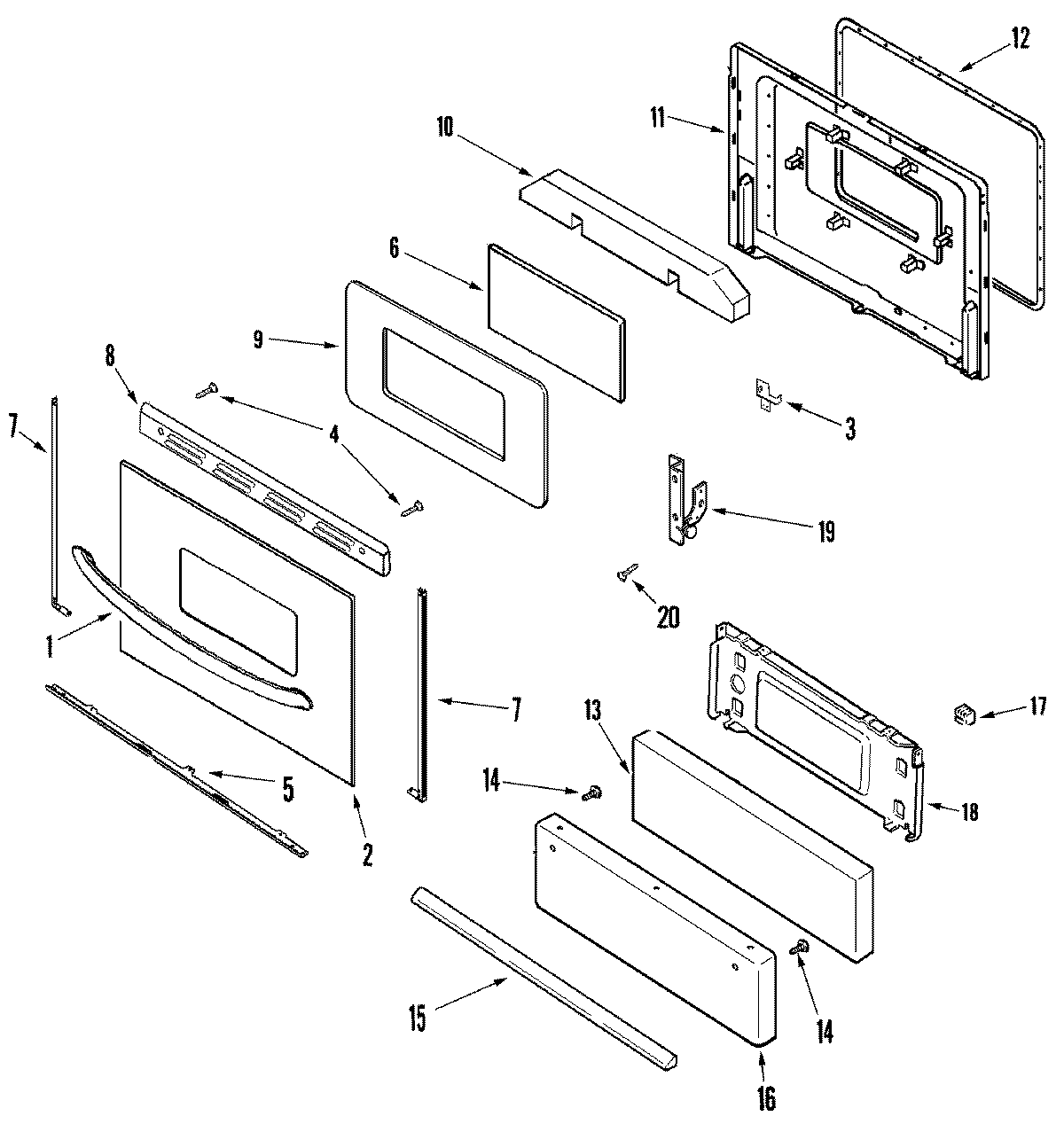

MGR4451ADW 03 – DOOR/DRAWER

Products

PositionProduct
1WP74011675 Whirlpool Door Handle
2MAY 74009727
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
4WP98008545 Whirlpool Screw
5WP3807F708-71 Whirlpool Support
6MAY 74002002
7WP3608F116-71 Whirlpool Door Trim
7WP3608F117-71 Whirlpool Door Trim
7WP74009014 Whirlpool Double Tape
8WP3608F141-71 Whirlpool Door Trim
9MAY 7101P209-60
9MAY 74002461
10MAY 74002458
11MAY 74005097
12WP7212P043-60 Whirlpool Oven Door Seal Gasket
13MAY 74001814
14WP74009541 Whirlpool Screw Assembly
15WP2411F013-71 Whirlpool Door Handle
16SCREW
16MAY 74001729
17MAY 74001663
18MAY 74007553
20MAY 74009897
