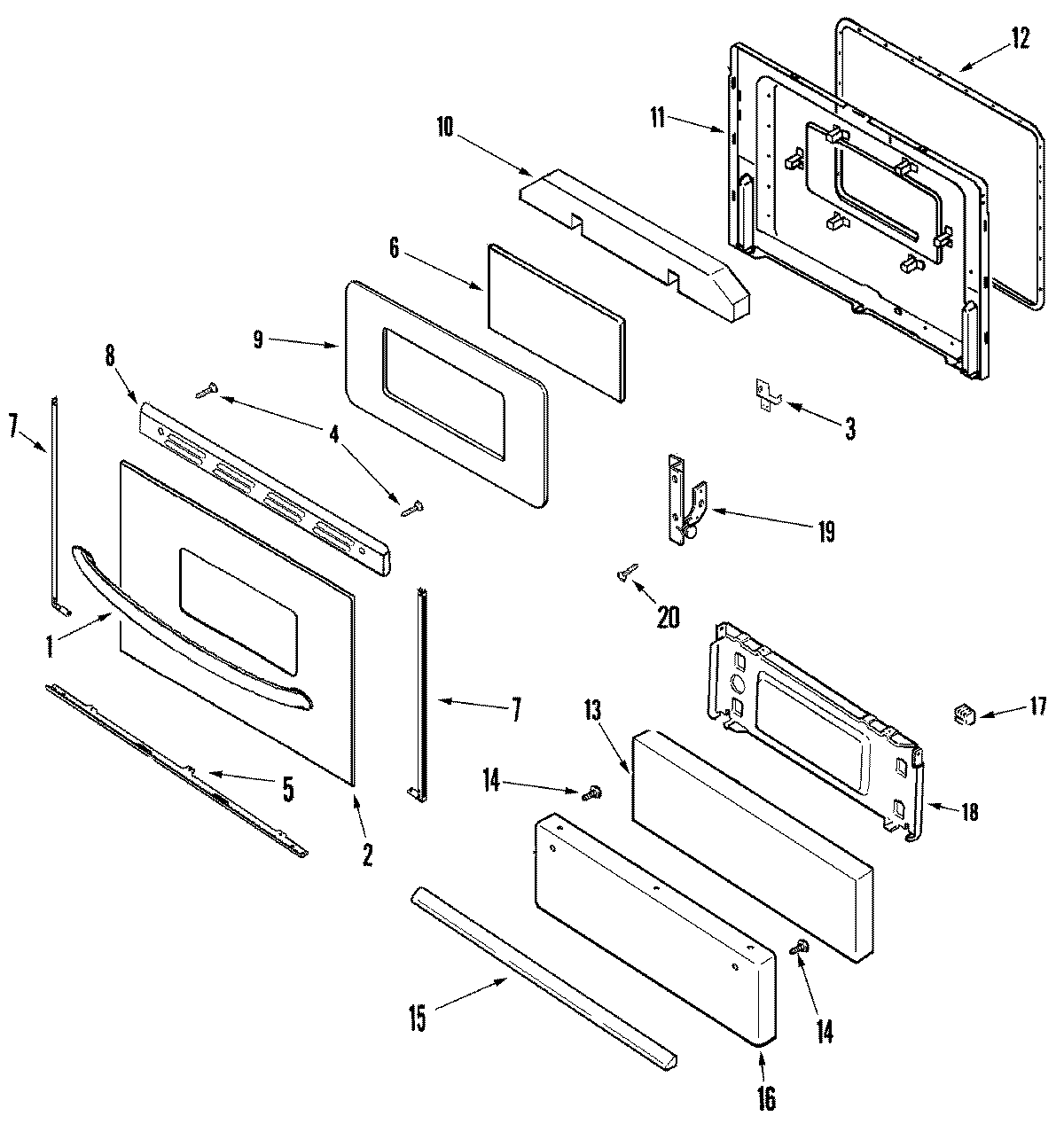

MGR4451BDQ 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74011107
1	HANDLE, DOOR (BSQ)
2	MAY 74009728
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	WP74006515 Whirlpool Washer Screw
5	SUPPORT, GLASS (BSQ)
5	SCREW
6	MAY 74002002
7	TRIM, DOOR (BSQ-LT)
7	TRIM, DOOR (BSQ-RT)
7	WP74009014 Whirlpool Double Tape
8	MAY 74009691
8	74011777 Whirlpool Range Oven Door Handle
9	WPW10131078 Whirlpool Nut Assembly
9	SPACER, RUBBER (BLK-SQUARE)
9	MAY 7101P209-60
9	MAY 74002461
10	MAY 74002458
11	MAY 74005097
12	WP7212P043-60 Whirlpool Oven Door Seal Gasket
13	MAY 74004964
13	WP74005546 Whirlpool RU Spacer
13	MAY 74001814
14	MAY 74004827
14	WP74009541 Whirlpool Screw Assembly
15	MAY 74007089
15	WP7518P464-60 Whirlpool Burner Grate
16	MAY 74009830
17	MAY 74002447
18	CLIP, WIRE LOCK
