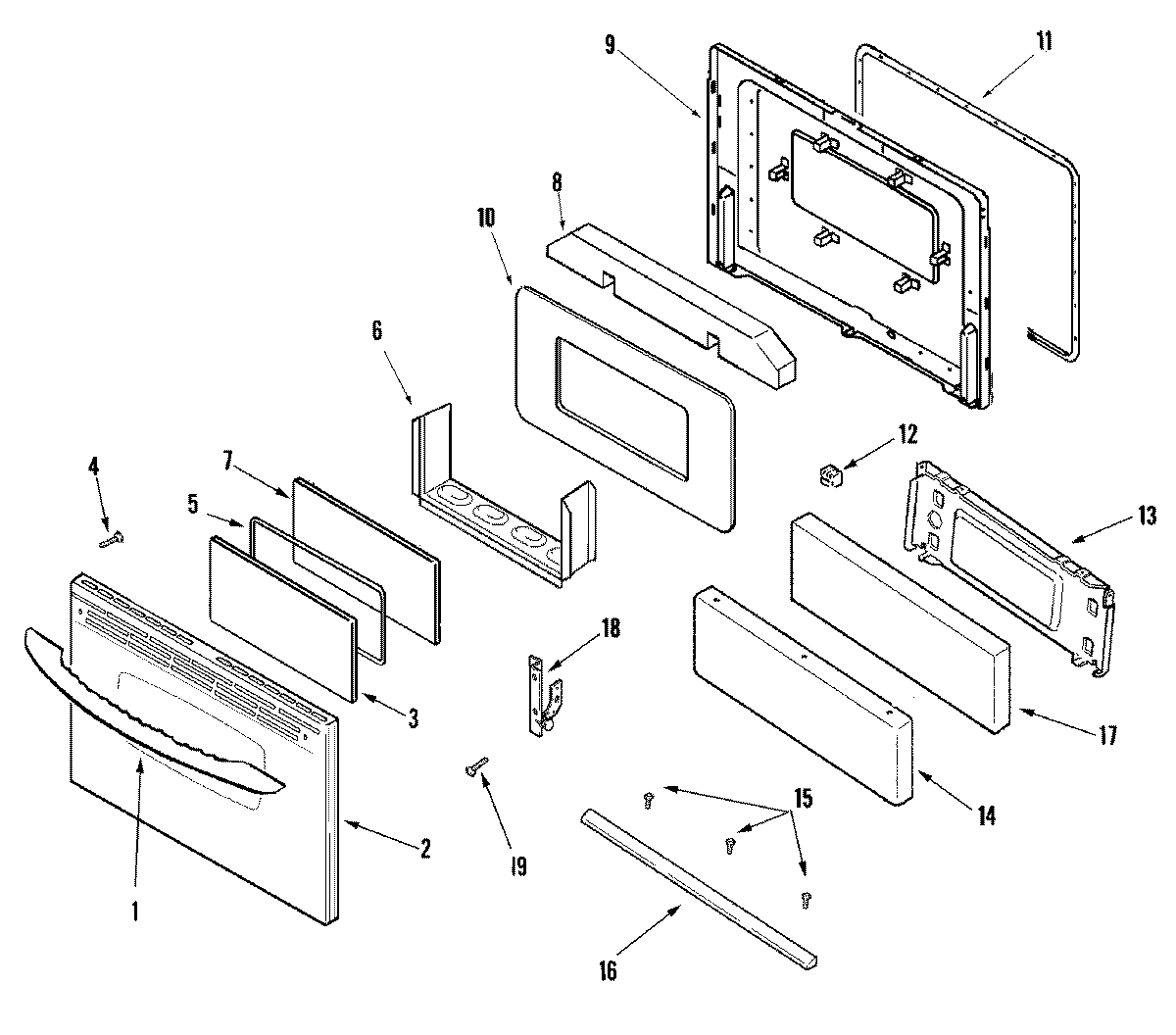

MGR4451BDS 03 – DOOR/DRAWER (STL)

MGR4451BDS 03 – DOOR/DRAWER (STL)

Written by

in

MGR4451BDS 03 – DOOR/DRAWER (STL)

Products

PositionProduct
174011777 Whirlpool Range Oven Door Handle
2MAY 74009702
2MAY 74009703
3MAY 74010416
4NUT, SNAP (ROUND-BLK)
4WP74006515 Whirlpool Washer Screw
5GASKET, WINDOW
6MAY 74002462
6CLIP, DOOR
7MAY 74002002
8MAY 74002458
9MAY 74005097
10MAY 74002461
10MAY 7101P209-60
11WP7212P043-60 Whirlpool Oven Door Seal Gasket
12MAY 74001663
13MAY 71003047
13WP74005546 Whirlpool RU Spacer
13MAY 74007553
14MAY 74004827
14MAY 74009907
15SCREW
1674002481 Whirlpool Screw
18CLIP, WIRE LOCK
