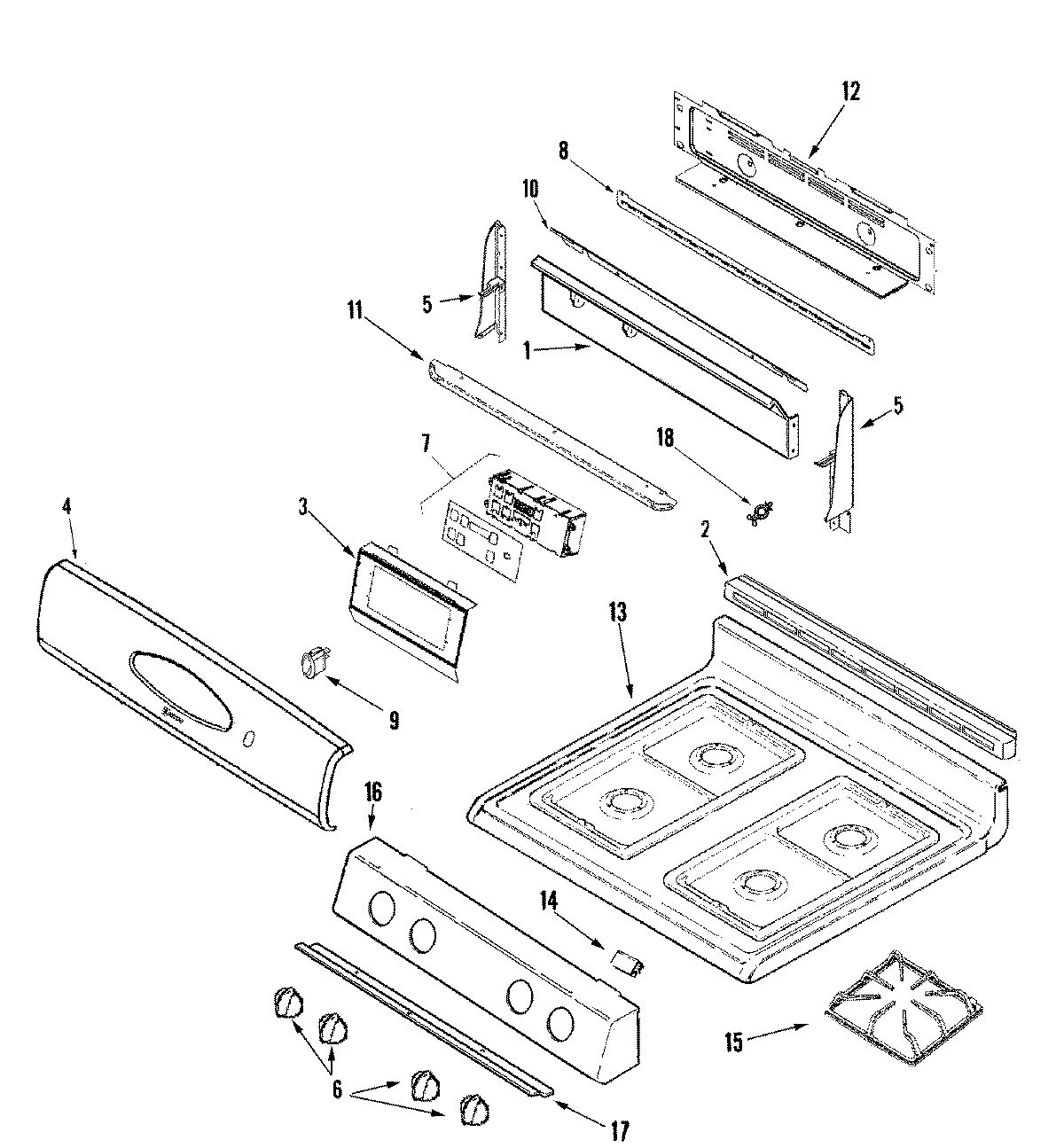

MGR4451BDW 02 – CONTROL PANEL/TOP ASSEMBLY

MGR4451BDW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR4451BDW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009779
1MAY 7101P147-60
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3BRACKET, CLOCK
4MAY 74009109
5MAY 74010212
5MAY 74010713
5WP98008544 Whirlpool Screw Assembly
6WP74009775 Whirlpool Burner Knob
7MAY 74010453
7WP74003976 Whirlpool Screw
8MAY 74009780
9WP74010226 Whirlpool RO Switch
10MAY 74009978
11MAY 74009799
11MAY 74009802
12MAY 74006536
12MAY 71001394
12WP90767 Whirlpool Screw
12MAY 74010804
13MAY 74003512
13W11189172 Whirlpool Glide Drawer
13WP74005546 Whirlpool RU Spacer
14MAY 74004827
15WP7518P464-60 Whirlpool Burner Grate
16MAY 74009829
17SCREW
17MAY 74002447
18CLIP, WIRE LOCK
