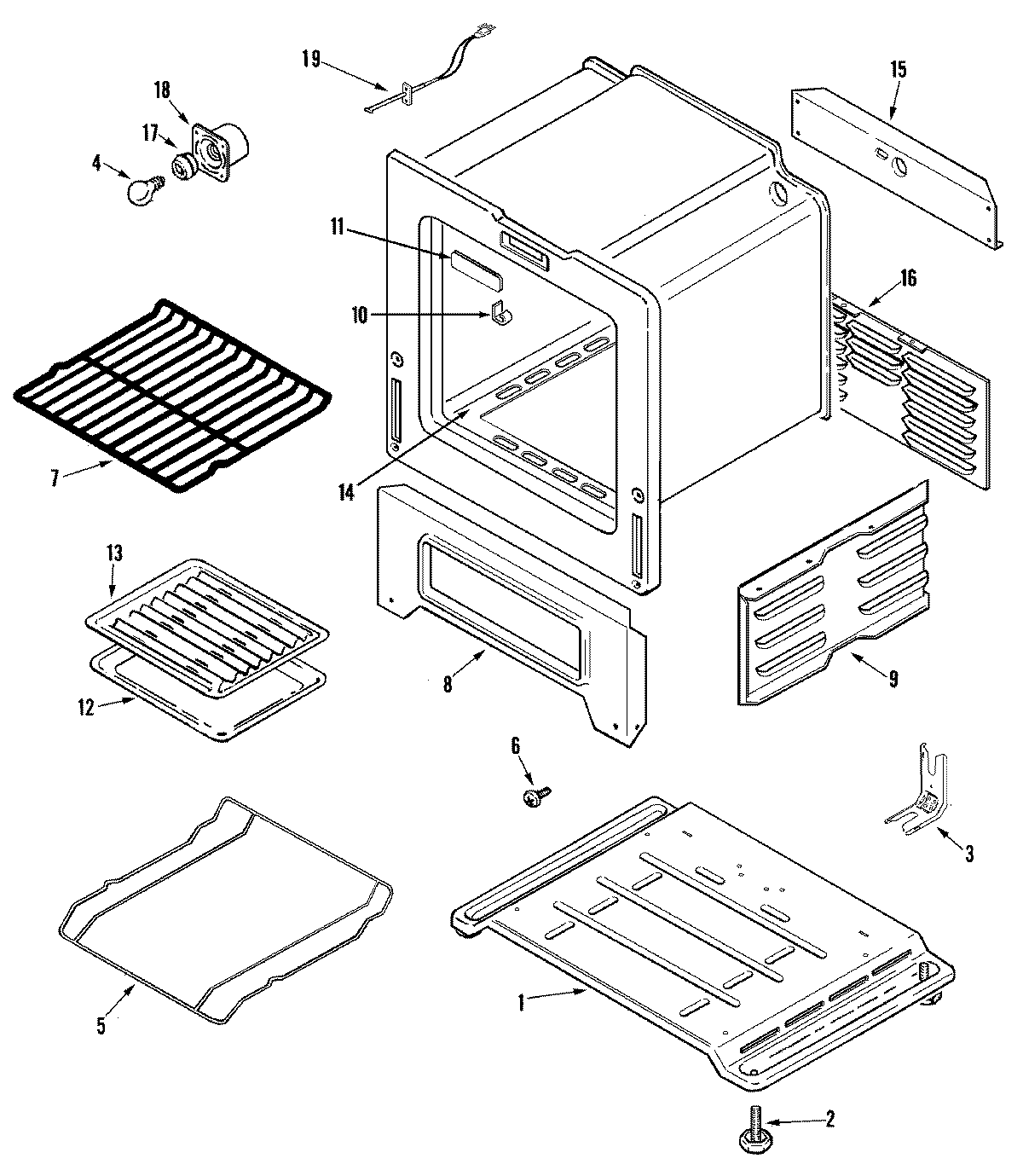

MGR4452ADB 05 – OVEN/BASE

Products

Position	Product
1	MAY 74005215
2	W11665456 Whirlpool Range Level Foot
3	WP7101P485-60 Whirlpool Anchor Tip
3	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
4	RANGE ONLY 40W 120V APPL BULB
5	MAY 74002381
6	SCREW (8ABX1/2“-BLK)
7	WPW10282492 Whirlpool Oven Rack
8	MAY 74002327
9	MAY 74002374
9	MAY 74002375
10	WP7112P004-60 Whirlpool Thermal Clip
11	PLUG, LOCK SLOT
12	MAY Y3401F02019
13	MAY Y3413F01619
14	MAY 74011347
14	MAY 74002393
14	MAY 74002377
14	MAY 74002376
15	MAY 74002378
16	MAY 74002379
17	SCREW
17	MAY 74003387
18	MAY 74003388
19	12001655 Whirlpool Oven Sensor
