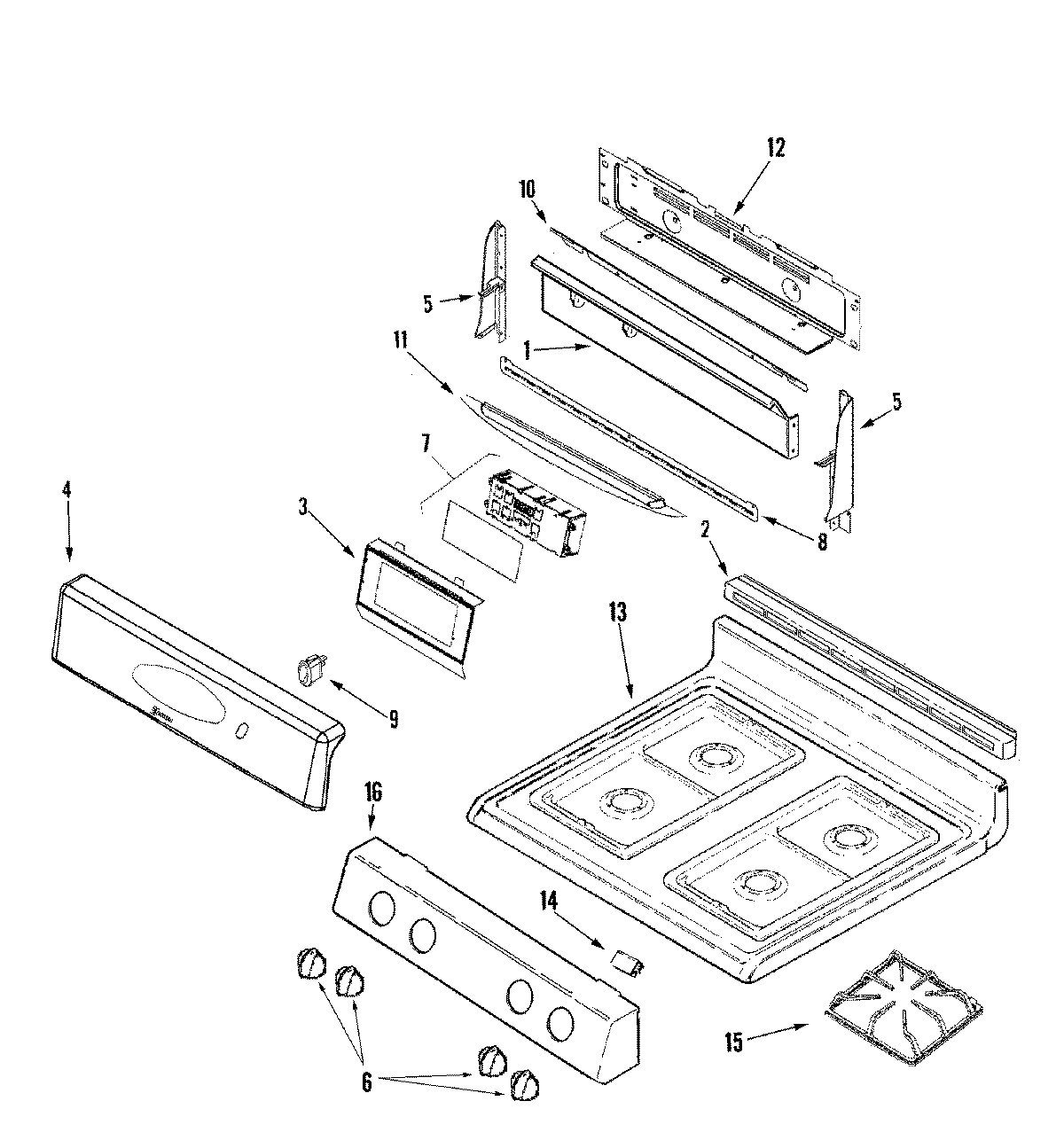

MGR4452ADQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 7101P147-60
1	MAY 74009779
2	MAY 74009797
2	SCREW (10ABX1/4P TR ZN)
3	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3	BRACKET, CLOCK
4	MAY 74009110
5	WP74009541 Whirlpool Screw Assembly
5	MAY 74010214
5	MAY 74010213
6	74009774 Whirlpool Oven Knob Bisque
7	MAY 74009881
7	WP74003976 Whirlpool Screw
8	MAY 74009780
9	7403P984-60 Whirlpool RO Switch
10	SCREW
10	MAY 74009708
11	MAY 74009803
11	MAY 74009798
12	WP90767 Whirlpool Screw
12	MAY 71001394
12	MAY 74010804
12	MAY 74006536
13	WP74005546 Whirlpool RU Spacer
13	W11189172 Whirlpool Glide Drawer
13	MAY 74004964
14	MAY 74004827
15	MAY 74003514
16	MAY 74009830
