MGR4452ADQ 03 – DOOR/DRAWER

MGR4452ADQ 03 – DOOR/DRAWER

Written by

in

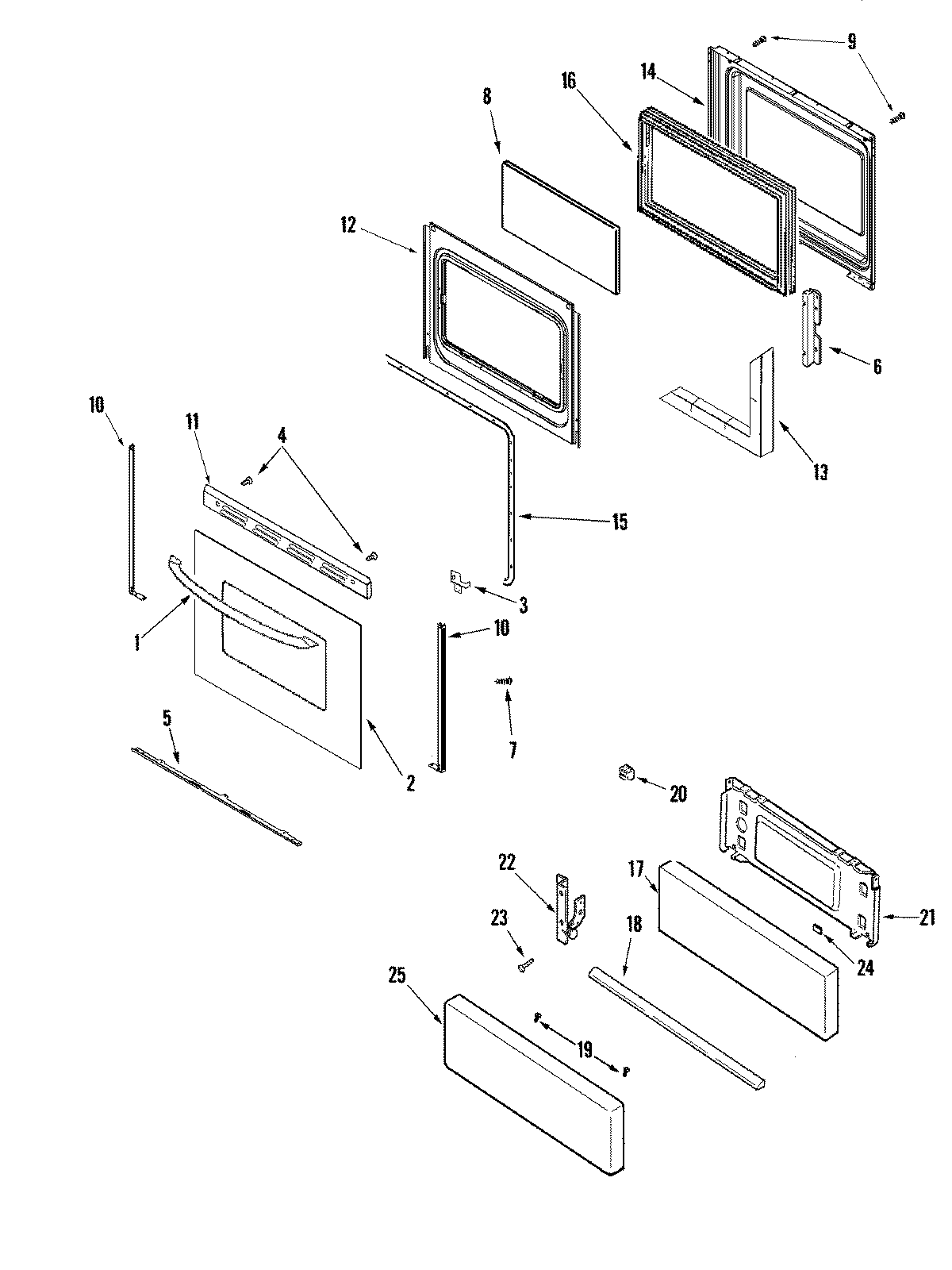

MGR4452ADQ 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74011107
1MAY 74009185
2MAY 74009733
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
4WP98008545 Whirlpool Screw
5WP3807F708-71 Whirlpool Support
6MAY 74003650
7WP74009541 Whirlpool Screw Assembly
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
10TRIM, DOOR (BSQ-LT)
10TRIM, DOOR (BSQ-RT)
11MAY 74009691
12MAY 7101P356-60
12MAY 74009502
13INSULATION, OVEN DOOR
14MAY 74009909
14NUT, SNAP (ROUND-BLK)
15WP7212P043-60 Whirlpool Oven Door Seal Gasket
16FRAME, GLASS
17MAY 74001814
18MAY 74007089
20MAY 74001663
21MAY 74007553
23MAY 74009897
24WP74005546 Whirlpool RU Spacer
25MAY 74005046
