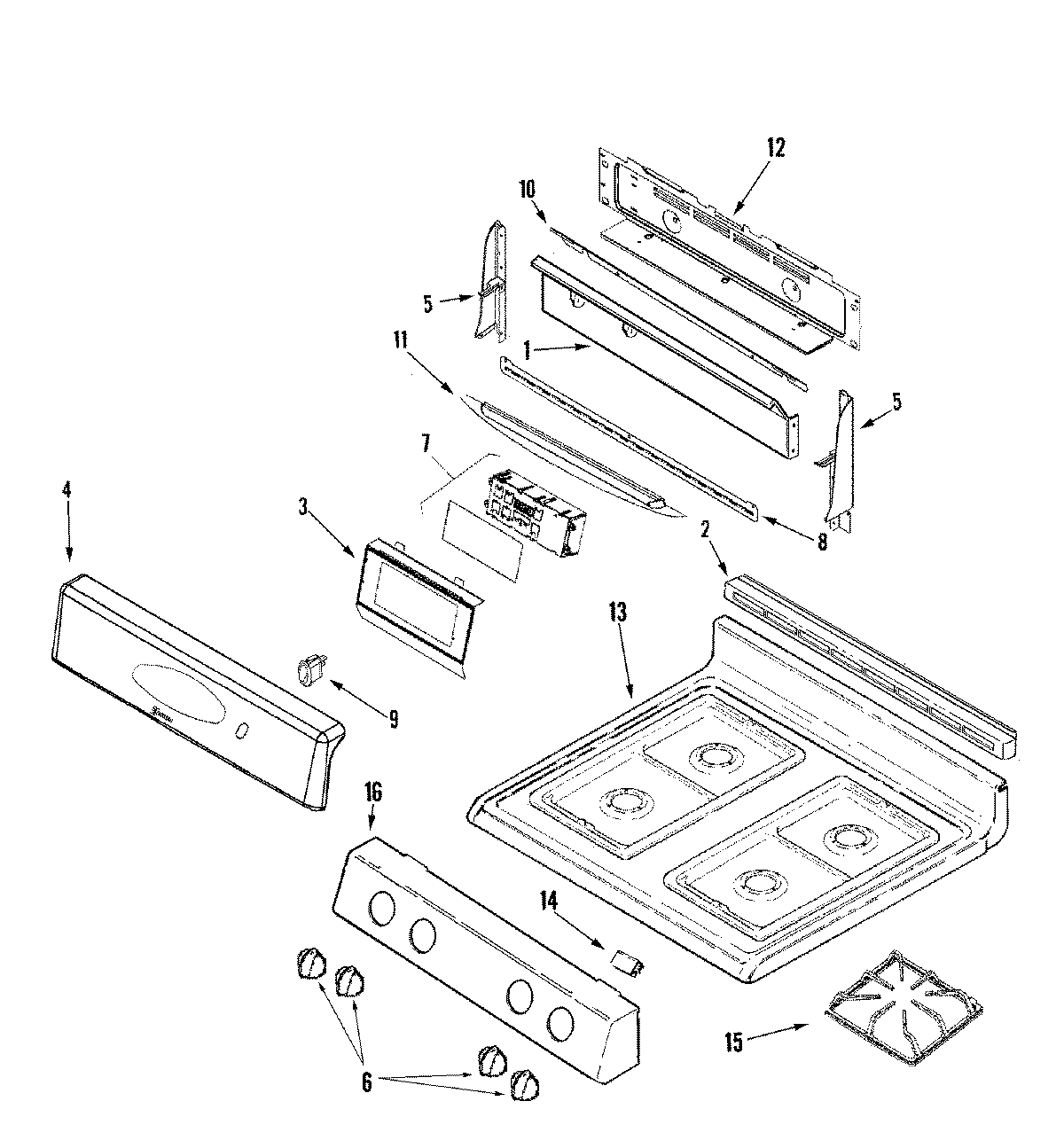

MGR4452ADS 02 – CONTROL PANEL/TOP ASSEMBLY

MGR4452ADS 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR4452ADS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 7101P147-60
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3BRACKET, CLOCK
4MAY 74010455
5MAY 74010202
5MAY 74010201
5WP98008545 Whirlpool Screw
6KNOB (BLK)
7WP74003976 Whirlpool Screw
7MAY 74009908
8MAY 74009780
97403P985-60 Whirlpool Rocker Switch (Black)
10SCREW
10MAY 74009708
11MAY 74009801
11MAY 74009800
12WP90767 Whirlpool Screw
12MAY 74006536
12MAY 74010804
12MAY 71001394
13MAY 71003047
13WP74005546 Whirlpool RU Spacer
13W11189172 Whirlpool Glide Drawer
14MAY 74004827
15WP7518P464-60 Whirlpool Burner Grate
16MAY 74009827
